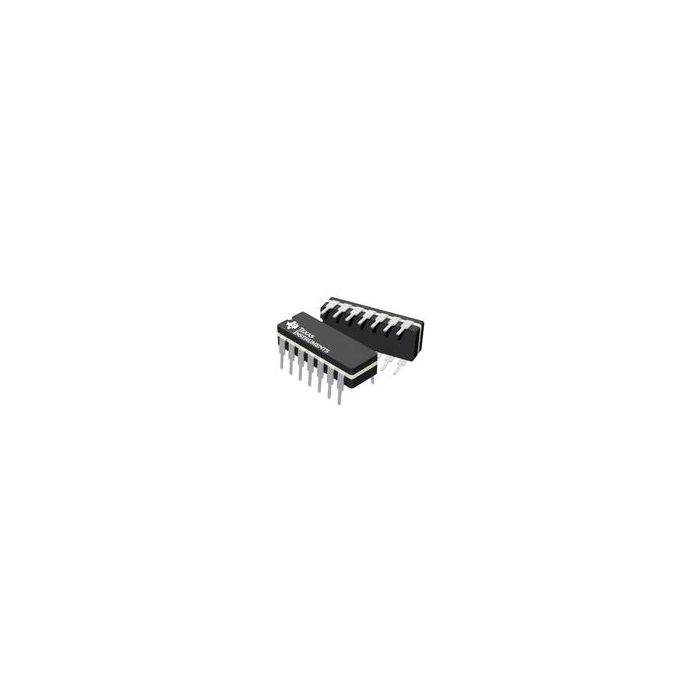

SN74LS164J

ProducentTexas InstrumentsEURoHSUnknown (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LS164J_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74LS164J

Shift Register Single 8-Bit Serial to Parallel 14-Pin CDIP

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 21
  • PCNs 39
  • MaskPart SN74LS164J%
  • IntroductionDate Mar 01, 1974

Parametry

  • Absolute Propagation Delay Time (ns) 36
  • Direction Type Uni-Directional
  • Logic Family LS
  • Logic Function Shift Register
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 32@5V
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Count Input Enables 0
  • Number of Element Inputs 2
  • Number of Element Outputs 8
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 8
  • Operation Mode Serial to Parallel
  • Output Type N/A
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Reset Type Asynchronous
  • Supplier Temperature Grade Commercial
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type N/R
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Shift Register Single 8-Bit Serial to Parallel 14-Pin CDIP
