SN74LS163N

ProducentON SemiconductorEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74LS163N_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / SN74LS163N

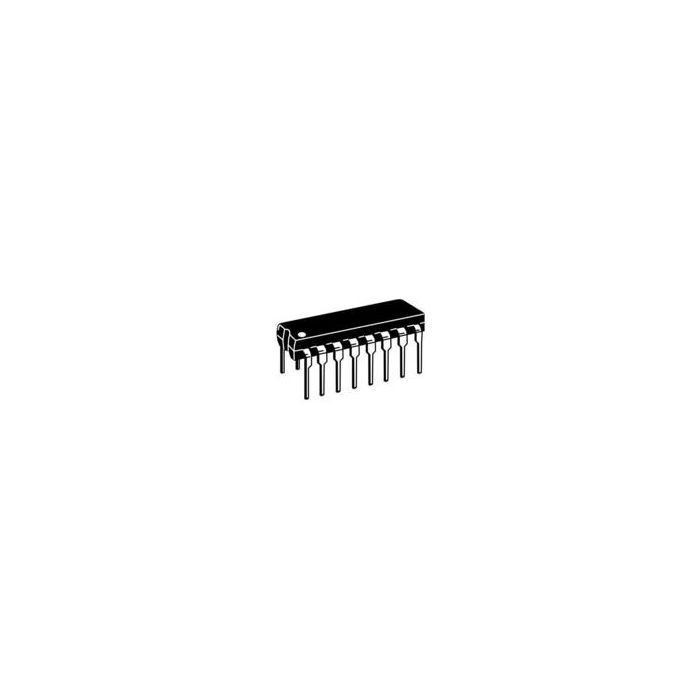

Counter Single 4-Bit Sync Binary UP 16-Pin PDIP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • PCNs 17
  • MaskPart SN74LS163N%
  • IntroductionDate Oct 18, 1996
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=SN74LS163N&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Direction Type Uni-Directional
  • Logic Family LS
  • Logic Function Counter
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 27
  • Minimum Operating Temperature (°C) 0
  • Number of Count Input Enables 2
  • Number of Element Inputs 4
  • Number of Element Outputs 4
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 4
  • Operation Mode UP Counter
  • Parallel Enable Input Yes
  • Preset Type Synchronous
  • Process Technology Bipolar
  • Reset Type Synchronous
  • Terminal Count Output Yes
  • Triggering Type Positive-Edge
  • Type Binary

Więcej informacji

Do pobrania Download
Main description Counter Single 4-Bit Sync Binary UP 16-Pin PDIP
