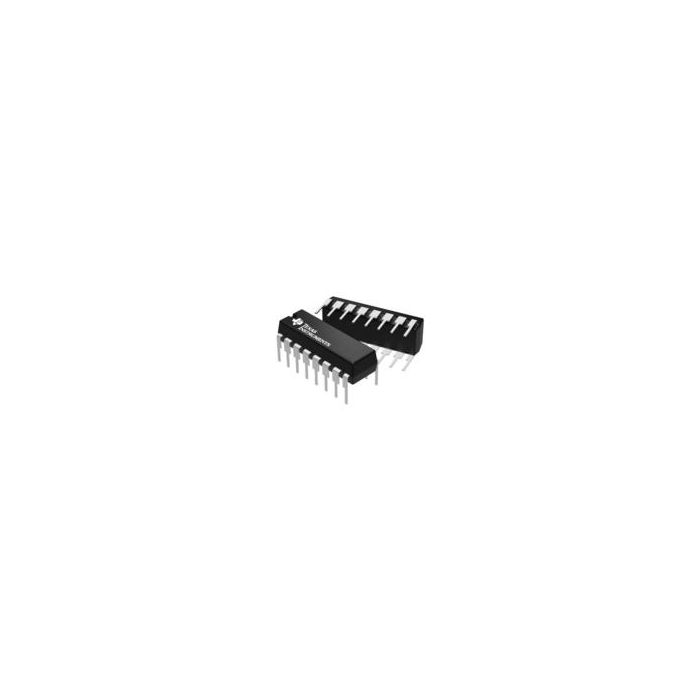

SN74HCT257N

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74HCT257N_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74HCT257N

Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 10
  • Inventory 7
  • PCNs 50
  • MaskPart SN74HCT257N%
  • IntroductionDate Jan 01, 2002

Parametry

  • Absolute Propagation Delay Time (ns) 50
  • Configuration 4 x 2:1
  • Input Signal Type Single-Ended
  • Logic Family HCT
  • Logic Function Multiplexer
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -6
  • Maximum Low Level Output Current (mA) 6
  • Maximum On Resistance (Ohm) N/A
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 38@4.5V|35@5.5V
  • Maximum Quiescent Current (uA) 8
  • Maximum Supply Current (mA) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 1
  • Number of Input Enables per Element 0
  • Number of Inputs per Chip 8
  • Number of Output Enables per Element 1
  • Number of Outputs per Chip 4
  • Number of Selection Inputs per Element 1
  • Output Signal Type Single-Ended
  • Output Type 3-State
  • Parity Invert Input No
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 150
  • Supplier Temperature Grade Commercial
  • Tolerant I/Os (V) N/A
  • Typical Operating Supply Voltage (V) 5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin PDIP Tube
