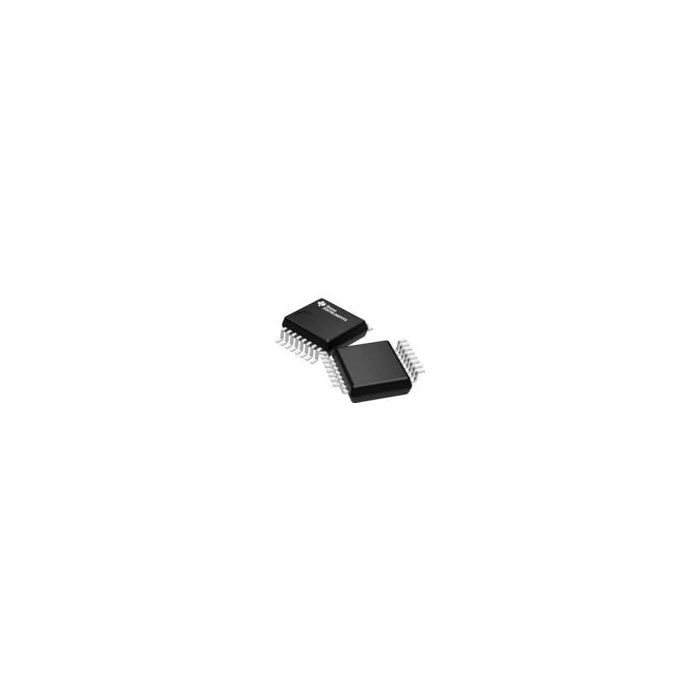

SN74HC595DBRE4
| Do pobrania | Download |
|---|---|
| Main description | Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SSOP T/R |
Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 59
- Inventory 1
- PCNs 39
- MaskPart SN74HC595DB%E4
- IntroductionDate Aug 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 250
- Direction Type Uni-Directional
- Logic Family HC
- Logic Function Shift Register
- Maximum Propagation Delay Time @ Maximum CL (ns) 200@2V|40@4.5V|34@6V
- Maximum Quiescent Current (mA) 0.008
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Count Input Enables 0
- Number of Element Inputs 1
- Number of Element Outputs 9
- Number of Elements per Chip 1
- Number of Selection Inputs per Element 0
- Number of Stages 8
- Operation Mode Serial to Serial/Parallel
- Output Type 3-State
- Parallel Enable Input No
- Preset Type N/A
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 150
- Reset Type Asynchronous
- Supplier Temperature Grade N/A
- Terminal Count Output No
- Tolerant I/Os (V) N/A
- Triggering Type Positive-Edge
- Type N/R
