SN74HC280N
Do pobrania | Download |
---|---|

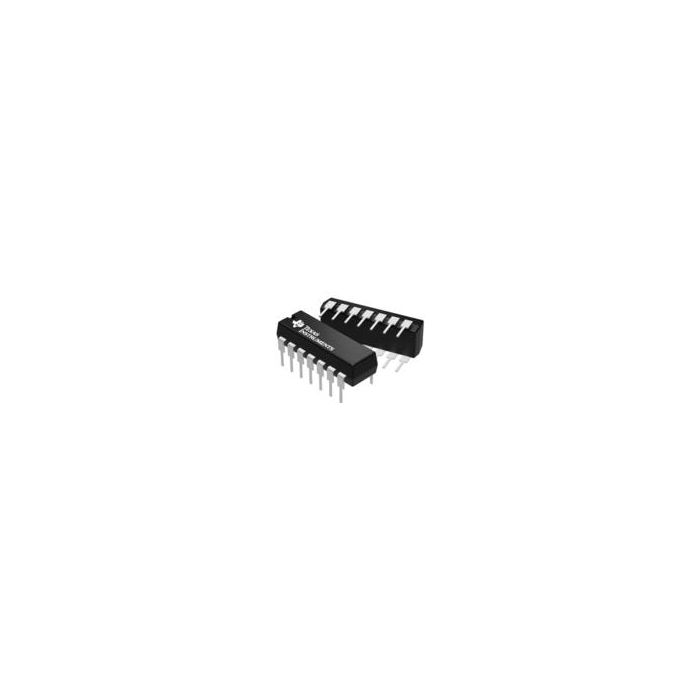

Main description | Parity Generator/Checker 9-Bit 1-Element 14-Pin PDIP Tube |
Parity Generator/Checker 9-Bit 1-Element 14-Pin PDIP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSUnknown (2002/95/EC)
- Automotive No
Informacje dodatkowe
- Crosses 10
- PCNs 39
- MaskPart SN74HC280N%
- IntroductionDate Dec 03, 1998
Parametry
- Absolute Propagation Delay Time (ns) 260
- Logic Family HC
- Logic Function Parity Generator/Checker
- Maximum High Level Output Current (mA) -5.2
- Maximum Low Level Output Current (mA) 5.2
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 205@2V|41@4.5V|35@6V
- Maximum Quiescent Current (uA) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Bits 9
- Number of Elements per Chip 1
- Output Type N/A
- Process Technology CMOS
- Supplier Temperature Grade N/A
