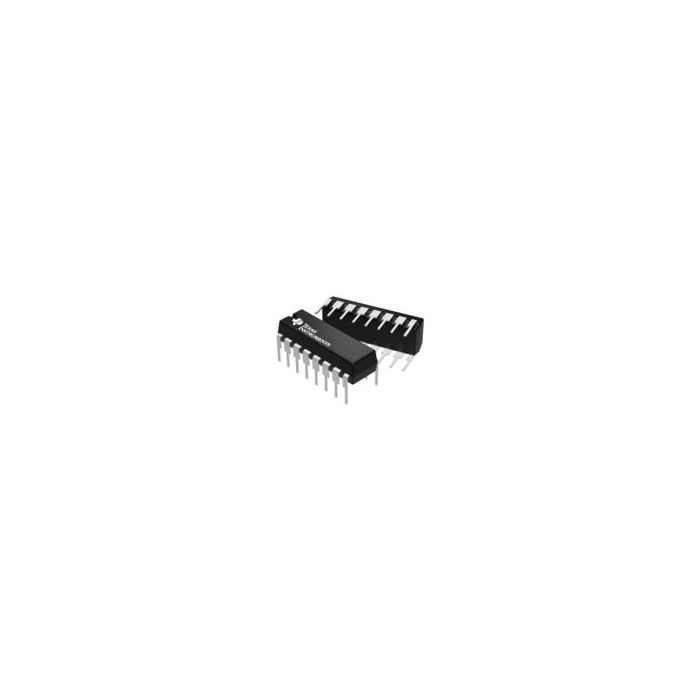

SN74HC157NE4
| Do pobrania | Download |
|---|---|
| Main description | Multiplexer 1-Element CMOS 8-IN 16-Pin PDIP Tube |
Multiplexer 1-Element CMOS 8-IN 16-Pin PDIP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 43
- Inventory 2
- PCNs 40
- MaskPart SN74HC157NE4%
- IntroductionDate Jan 01, 2002
Parametry
- Absolute Propagation Delay Time (ns) 260
- Configuration 4 x 2:1
- Input Signal Type Single-Ended
- Logic Family HC
- Logic Function Multiplexer
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (MHz) N/A
- Maximum High Level Output Current (mA) -7.8
- Maximum Low Level Output Current (mA) 7.8
- Maximum On Resistance (Ohm) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 190@2V|38@4.5V|33@6V
- Maximum Quiescent Current (uA) 8
- Maximum Supply Current (mA) N/A
- Minimum Dual Supply Voltage (V) N/R
- Number of Elements per Chip 1
- Number of Input Enables per Element 1
- Number of Inputs per Chip 8
- Number of Output Enables per Element 0
- Number of Outputs per Chip 4
- Number of Selection Inputs per Element 1
- Output Signal Type Single-Ended
- Output Type N/A
- Parity Invert Input No
- Polarity Non-Inverting
- Power Supply Type Single
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 150
- Supplier Temperature Grade Commercial
- Tolerant I/Os (V) N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
