SN74HC157DBR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74HC157DBR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74HC157DBR

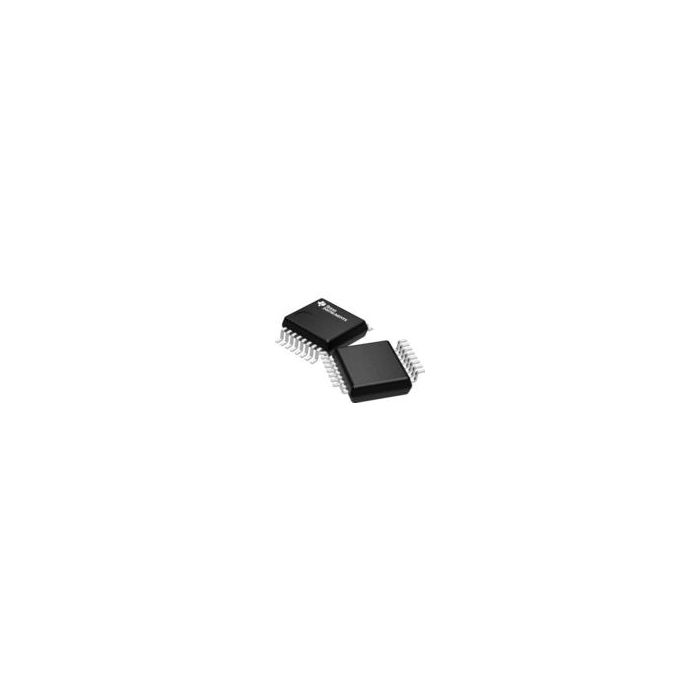

Multiplexer 1-Element CMOS 8-IN 16-Pin SSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 46
  • Inventory 5
  • PCNs 43
  • MaskPart SN74HC157DB%
  • IntroductionDate Aug 01, 2003

Parametry

  • Absolute Propagation Delay Time (ns) 260
  • Configuration 4 x 2:1
  • Input Signal Type Single-Ended
  • Logic Family HC
  • Logic Function Multiplexer
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -7.8
  • Maximum Low Level Output Current (mA) 7.8
  • Maximum On Resistance (Ohm) N/A
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 190@2V|38@4.5V|33@6V
  • Maximum Quiescent Current (uA) 8
  • Maximum Supply Current (mA) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 1
  • Number of Input Enables per Element 1
  • Number of Inputs per Chip 8
  • Number of Output Enables per Element 0
  • Number of Outputs per Chip 4
  • Number of Selection Inputs per Element 1
  • Output Signal Type Single-Ended
  • Output Type N/A
  • Parity Invert Input No
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 150
  • Supplier Temperature Grade Commercial
  • Tolerant I/Os (V) N/A
  • Typical Operating Supply Voltage (V) 5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Multiplexer 1-Element CMOS 8-IN 16-Pin SSOP T/R
