SN74HC08QPWRQ1

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74HC08QPWRQ1_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74HC08QPWRQ1

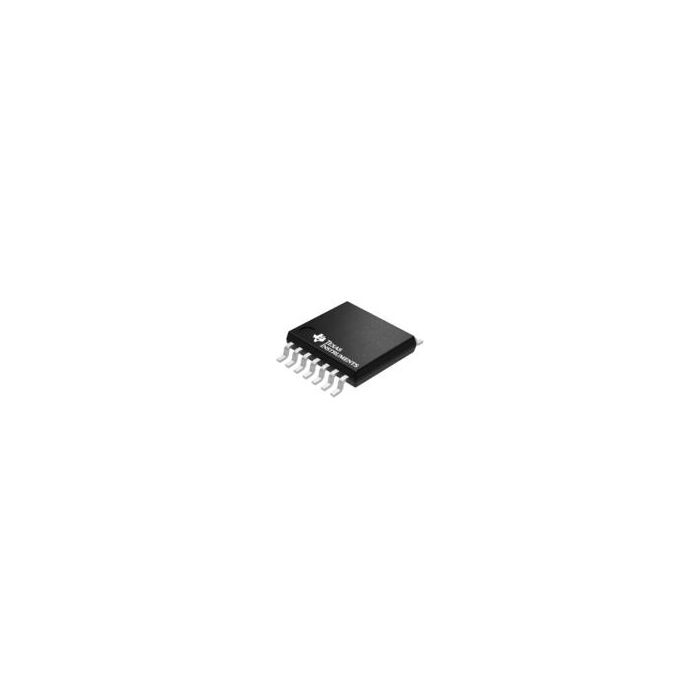

AND Gate 4-Element 2-IN CMOS Automotive 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 3
  • Inventory 6
  • PCNs 45
  • MaskPart SN74HC08QPW%Q1
  • IntroductionDate Jan 07, 2009

Parametry

  • Absolute Propagation Delay Time (ns) 150
  • Input Type N/A
  • Logic Family HC
  • Logic Function AND
  • Maximum High Level Output Current (mA) -5.2
  • Maximum Low Level Output Current (mA) 5.2
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 100@2V|20@4.5V|17@6V
  • Maximum Quiescent Current (uA) 2
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 4
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type Push-Pull
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Automotive
  • Typical Operating Supply Voltage (V) 5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description AND Gate 4-Element 2-IN CMOS Automotive 14-Pin TSSOP T/R
