SN74CBTS16213DLR
Do pobrania | Download |
---|---|

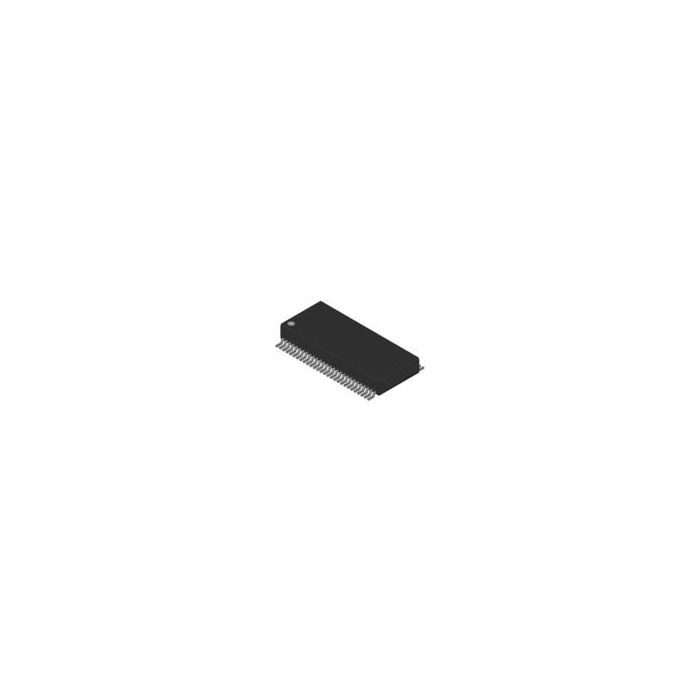

Main description | 12-CHBus Exchange Switch 1-Element 24-IN- 24-OUT 56-Pin SSOP T/R |
12-CHBus Exchange Switch 1-Element 24-IN- 24-OUT 56-Pin SSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSUnknown (2002/95/EC)
- Automotive No
Informacje dodatkowe
- Crosses 6
- PCNs 40
- MaskPart SN74CBTS16213DL%
- IntroductionDate Mar 01, 1998
Parametry
- Absolute Propagation Delay Time (ns) N/A
- Configuration 12 x 2:2
- Logic Family CBT
- Maximum High Level Output Current (mA) -128
- Maximum Low Level Output Current (mA) 128
- Maximum On Resistance (Ohm) N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) N/A
- Maximum Quiescent Current (uA) 3
- Maximum Supply Current (mA) N/A
- Number of Elements per Chip 1
- Number of Inputs per Chip 24
- Number of Outputs per Chip 24
- Process Technology CMOS
- Propagation Delay Test Condition (pF) N/A
- Supplier Temperature Grade Commercial
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
