SN74CBTLV16212DGV

ProducentTexas InstrumentsEURoHSUnknown (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74CBTLV16212DGV_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74CBTLV16212DGV

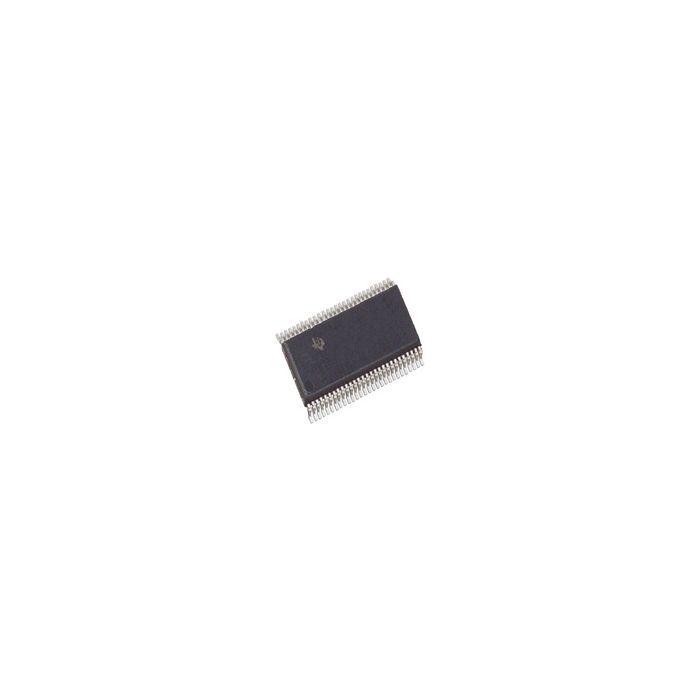

12-CHBus Exchange Switch 1-Element 24-IN- 24-OUT 56-Pin TVSOP

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 27
  • PCNs 39
  • MaskPart SN74CBTLV16212DGV%
  • IntroductionDate Dec 01, 1997

Parametry

  • Absolute Propagation Delay Time (ns) 11.1
  • Configuration 12 x 2:2
  • Logic Family CBTLV
  • Maximum High Level Output Current (mA) -128
  • Maximum Low Level Output Current (mA) 128
  • Maximum On Resistance (Ohm) 27(Typ)
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 0.25@3.3V
  • Maximum Quiescent Current (uA) 10
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2.3
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 1
  • Number of Inputs per Chip 24
  • Number of Outputs per Chip 24
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 2.5|3.3
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description 12-CHBus Exchange Switch 1-Element 24-IN- 24-OUT 56-Pin TVSOP
