SN74CB3T3383DWG4

Więcej informacji
Do pobrania Download

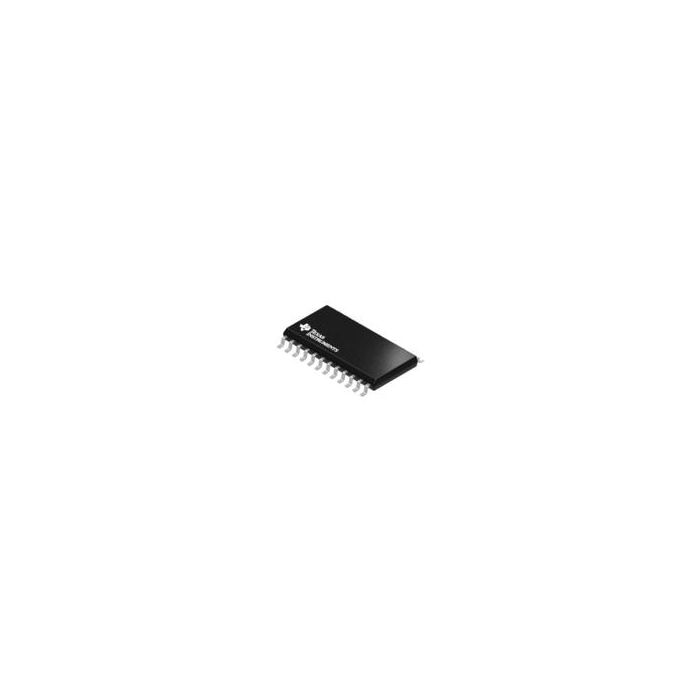

Main description 5-CHBus Exchange Switch 1-Element 10-IN- 10-OUT 24-Pin SOIC Tube
5-CHBus Exchange Switch 1-Element 10-IN- 10-OUT 24-Pin SOIC Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 13
  • PCNs 39
  • MaskPart SN74CB3T3383DW%G4
  • IntroductionDate Aug 01, 2003

Parametry

  • Absolute Propagation Delay Time (ns) 15
  • Configuration 5 x 2:2
  • Logic Family CB3T
  • Maximum High Level Output Current (mA) -128
  • Maximum Low Level Output Current (mA) 128
  • Maximum On Resistance (Ohm) 5(Typ)
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 0.25@3.3V
  • Maximum Quiescent Current (uA) 20
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2.3
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 1
  • Number of Inputs per Chip 10
  • Number of Outputs per Chip 10
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 2.5|3.3
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A
