SN74AUP1G74DCURG4
Do pobrania | Download |
---|---|
Main description | Flip Flop D-Type Pos-Edge 1-Element 8-Pin VSSOP T/R |

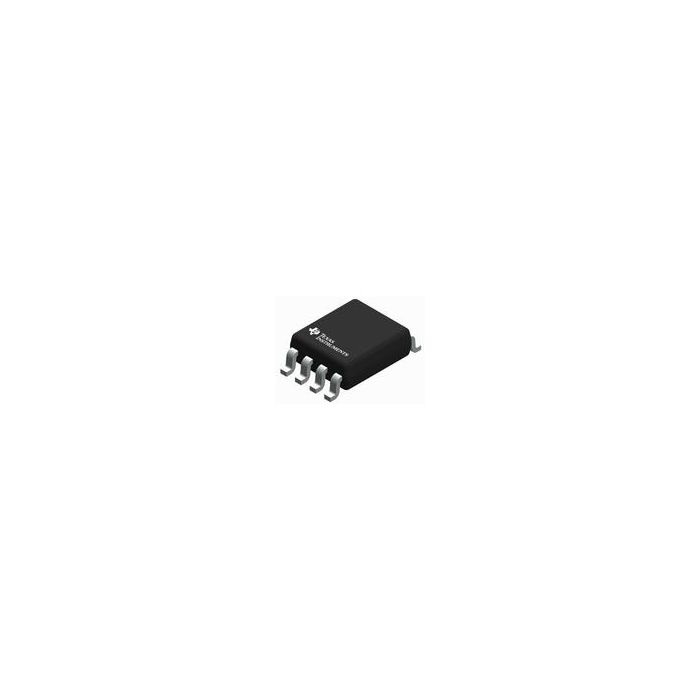

Flip Flop D-Type Pos-Edge 1-Element 8-Pin VSSOP T/R
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 8
- PCNs 44
- MaskPart SN74AUP1G74DCU%G4
- IntroductionDate Apr 01, 2003
Parametry
- Absolute Propagation Delay Time (ns) 27
- Bus Hold No
- Input Signal Type Single-Ended
- Logic Family AUP
- Logic Function D-Type
- Maximum High Level Output Current (mA) -4
- Maximum Low Level Output Current (mA) 4
- Maximum Propagation Delay Time @ Maximum CL (ns) 27@1.2V|17@1.5V|13@1.8V|9@2.5V|7@3.3V
- Maximum Quiescent Current (mA) 0.0005
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Storage Temperature (°C) -65
- Number of Channels per Chip 1
- Number of Element Inputs 1
- Number of Element Outputs 1
- Number of Elements per Chip 1
- Number of Output Enables per Element N/A
- Output Signal Type Differential
- Output Type N/A
- Polarity Inverting/Non-Inverting
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 30
- Set/Reset Set/Reset
- Supplier Temperature Grade N/A
- Triggering Type Positive-Edge
