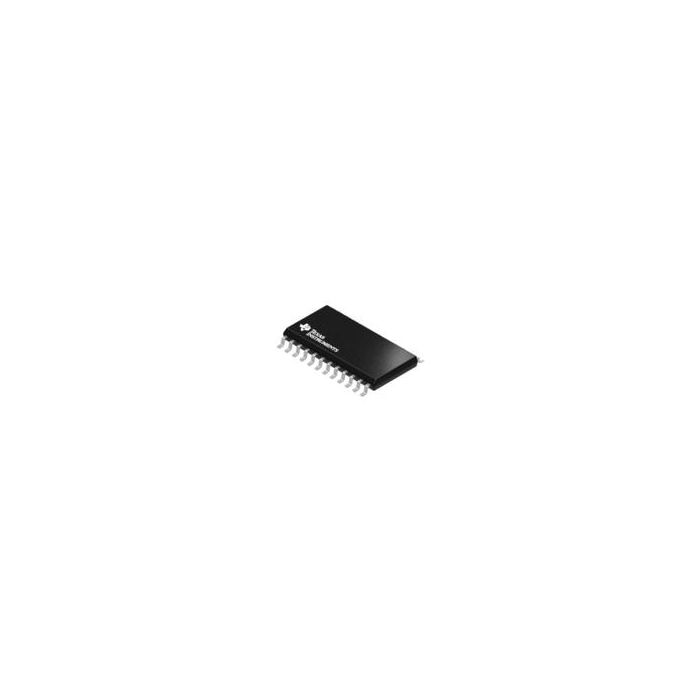

SN74AS181ADWRE4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74AS181ADWRE4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74AS181ADWRE4

Arithmetic Logic Unit 4-Bit 1-Element Bipolar 24-Pin SOIC T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • PCNs 39
  • MaskPart SN74AS181ADW%E4
  • IntroductionDate Jul 01, 2005

Parametry

  • Absolute Propagation Delay Time (ns) 21
  • Forced Root N/A
  • Logic Family AS
  • Logic Function Arithmetic Logic Unit
  • Maximum High Level Output Current (mA) -3
  • Maximum Low Level Output Current (mA) 48
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 11@4.5V to 5.5V
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Bits 4
  • Number of Elements per Chip 1
  • Process Technology Bipolar
  • Specification N/A
  • Supplier Temperature Grade N/A
  • Supply Requirement Single
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Arithmetic Logic Unit 4-Bit 1-Element Bipolar 24-Pin SOIC T/R
