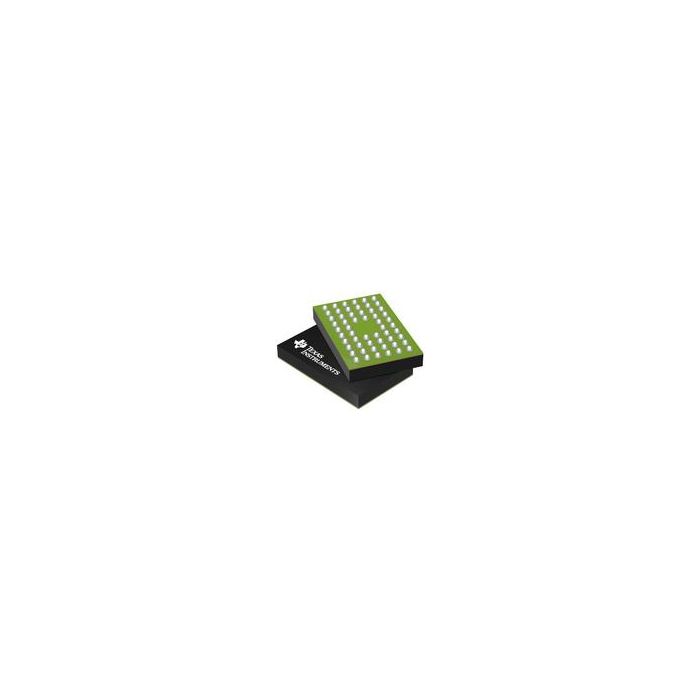

SN74ALVCH162268KR

ProducentTexas InstrumentsEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74ALVCH162268KR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74ALVCH162268KR

Registered Bus Exchanger 1-Element 24-OUT 12-IN 56-Pin BGA MICROSTAR JUNIOR T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 24
  • Inventory 1
  • PCNs 49
  • MaskPart SN74ALVCH162268K%
  • IntroductionDate Aug 01, 1995

Parametry

  • Absolute Propagation Delay Time (ns) 7.3
  • Configuration 12 x 2:1
  • Function Registered Bus Exchanger
  • Logic Family ALVC
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (GHz) 0.15(Min)@3.3V|0.125(Min)@2.7V|0.12(Min)@2.5V
  • Maximum High Level Output Current (mA) -24
  • Maximum Low Level Output Current (mA) 24
  • Maximum On Resistance (Ohm) N/A
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Propagation Delay Time @ Maximum CL (ns) 5.9@2.7V|5.4@3.3V
  • Maximum Quiescent Current (uA) 40
  • Maximum Supply Current (mA) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 1
  • Number of Inputs per Chip 12
  • Number of Outputs per Chip 24
  • Output Type 3-State
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Registered Bus Exchanger 1-Element 24-OUT 12-IN 56-Pin BGA MICROSTAR JUNIOR T/R
