SN74ALVC10PWRG4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74ALVC10PWRG4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74ALVC10PWRG4

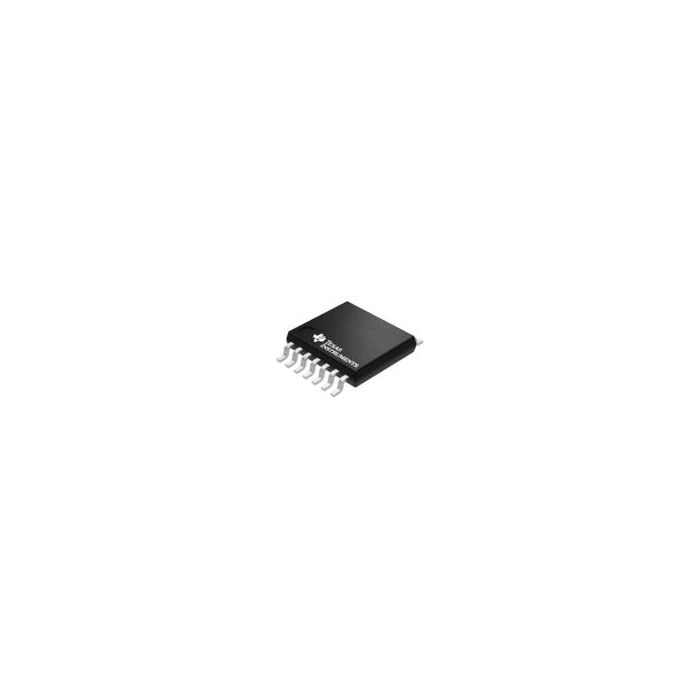

NAND Gate 3-Element 3-IN CMOS 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 20
  • Inventory 4*
  • PCNs 41
  • MaskPart SN74ALVC10PW%G4
  • IntroductionDate Aug 01, 2003

Parametry

  • Absolute Propagation Delay Time (ns) 4.8
  • Input Type N/A
  • Logic Family ALVC
  • Logic Function NAND
  • Maximum High Level Output Current (mA) -24
  • Maximum Low Level Output Current (mA) 24
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Propagation Delay Time @ Maximum CL (ns) 3.3@2.7V|3@3.3V
  • Maximum Quiescent Current (uA) 10
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Number of Element Inputs 3-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 3
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type Push-Pull
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description NAND Gate 3-Element 3-IN CMOS 14-Pin TSSOP T/R
