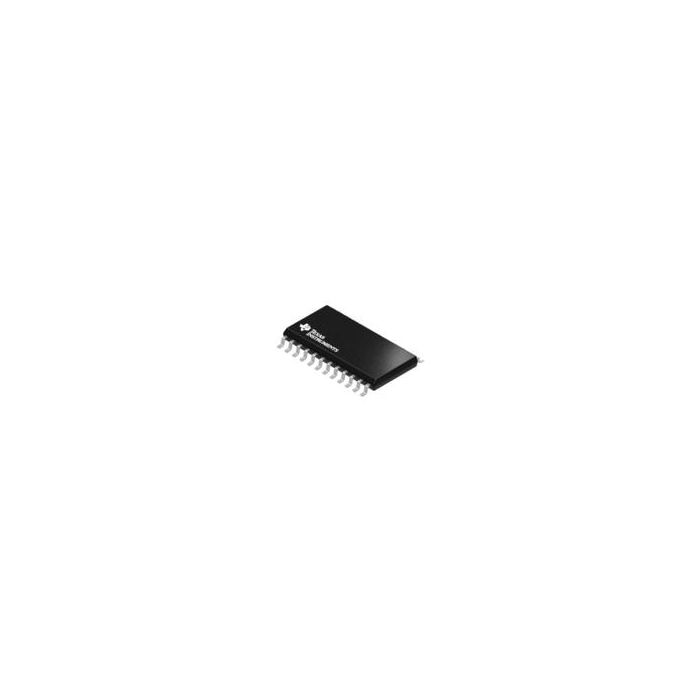

SN74ALS870DWRG4

ProducentTexas InstrumentsEURoHSUnknown (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74ALS870DWRG4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74ALS870DWRG4

Register File Dual-Element 8-CH Bipolar 24-Pin SOIC T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • PCNs 39
  • MaskPart SN74ALS870DW%G4
  • IntroductionDate Dec 01, 1982

Parametry

  • Absolute Propagation Delay Time (ns) 26
  • Bus Hold No
  • Input Signal Type Single-Ended
  • Logic Family ALS
  • Logic Function Register File
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -2.6
  • Maximum Low Level Output Current (mA) 24
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 26@4.5V to 5.5V
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Channels per Chip 8
  • Number of Element Inputs 4
  • Number of Element Outputs 4
  • Number of Elements per Chip 2
  • Number of Input Enables per Element 1
  • Number of Output Enables per Element 1
  • Number of Selection Inputs per Element 4
  • Output Signal Type Single-Ended
  • Output Type 3-State
  • Polarity Non-Inverting
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 50
  • Reset Type N/A
  • Supplier Temperature Grade N/A
  • Tolerant I/Os (V) N/A
  • Triggering Type N/A
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Register File Dual-Element 8-CH Bipolar 24-Pin SOIC T/R
