SN74ALS819FN

ProducentTexas InstrumentsEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74ALS819FN_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74ALS819FN

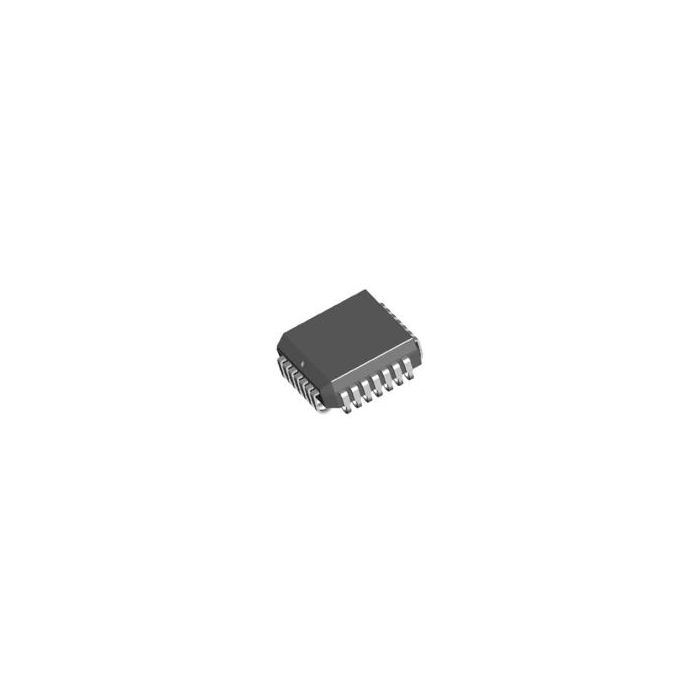

Diagnostic Register Single-Element 8-CH Bipolar 28-Pin PLCC Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • PCNs 39
  • MaskPart SN74ALS819FN%
  • IntroductionDate Jan 01, 1986

Parametry

  • Absolute Propagation Delay Time (ns) 80
  • Bus Hold No
  • Input Signal Type Single-Ended
  • Logic Family ALS
  • Logic Function Diagnostic Register
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -3
  • Maximum Low Level Output Current (mA) 24
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 18@5V
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Channels per Chip 8
  • Number of Element Inputs 9
  • Number of Element Outputs 9
  • Number of Elements per Chip 1
  • Number of Input Enables per Element 0
  • Number of Output Enables per Element 1
  • Number of Selection Inputs per Element 1
  • Output Signal Type Single-Ended
  • Output Type 3-State
  • Polarity Non-Inverting
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 50
  • Reset Type N/A
  • Supplier Temperature Grade Commercial
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Diagnostic Register Single-Element 8-CH Bipolar 28-Pin PLCC Tube
