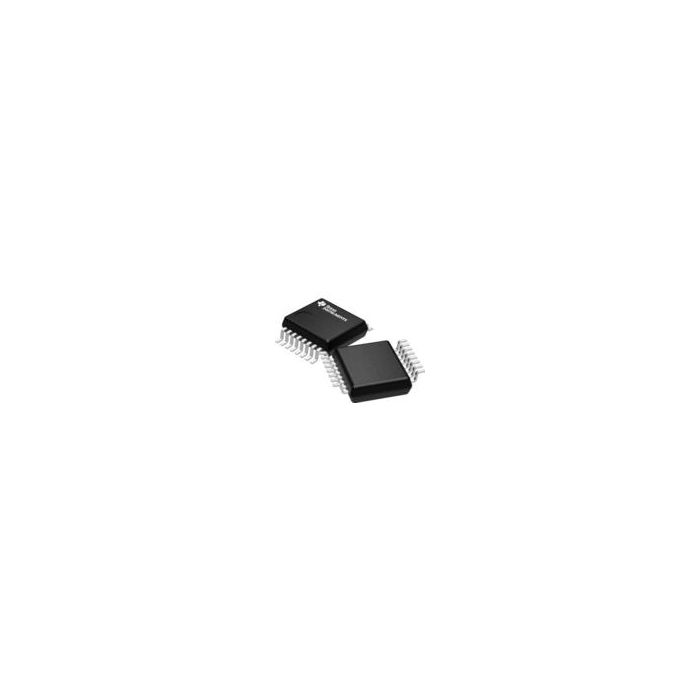

SN74AHC123ADBR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74AHC123ADBR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74AHC123ADBR

Monostable Multivibrator Dual-Element -40°C 85°C 16-Pin SSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 42
  • Inventory 4
  • PCNs 42
  • MaskPart SN74AHC123ADB%
  • IntroductionDate Aug 01, 2003

Parametry

  • Absolute Propagation Delay Time (ns) 29.5
  • Logic Family AHC
  • Logic Function Monostable Multivibrator
  • Maximum High Level Output Current (mA) -8
  • Maximum Low Level Output Current (mA) 8
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Propagation Delay Time @ Maximum CL (ns) 24.1@3.3V|14@5V
  • Maximum Quiescent Current (mA) 0.004
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 2
  • Process Technology CMOS
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description Monostable Multivibrator Dual-Element -40°C 85°C 16-Pin SSOP T/R
