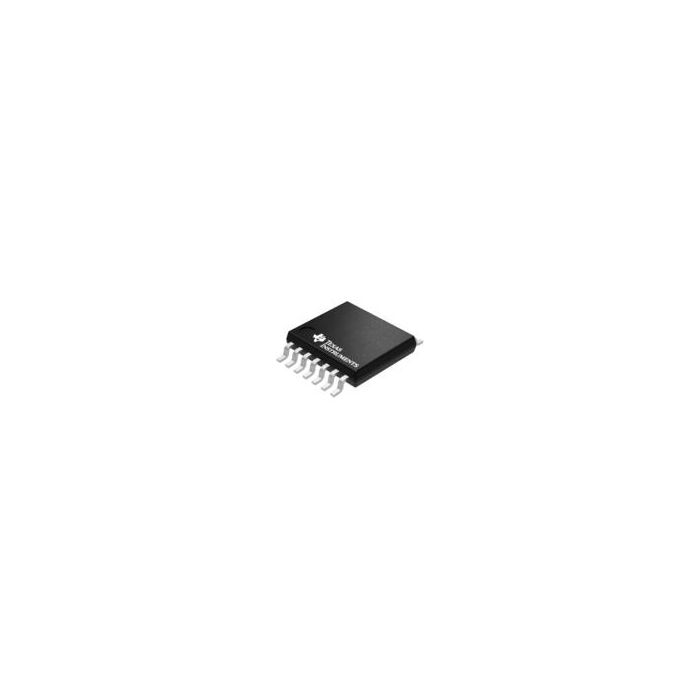

SN74AC32PWR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74AC32PWR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74AC32PWR

OR Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 21
  • Inventory 6
  • PCNs 44
  • MaskPart SN74AC32PW%
  • IntroductionDate Aug 01, 2003
  • AliasParts SN74AC32PWRG4

Parametry

  • Absolute Propagation Delay Time (ns) 10
  • Input Type N/A
  • Logic Family AC
  • Logic Function OR
  • Maximum High Level Output Current (mA) -24
  • Maximum Low Level Output Current (mA) 24
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 85
  • Maximum Propagation Delay Time @ Maximum CL (ns) 9@3.3V|7.5@5V
  • Maximum Quiescent Current (uA) 2
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 4
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type Push-Pull
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description OR Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R
