SN7483AN

ProducentTexas InstrumentsEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN7483AN_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN7483AN

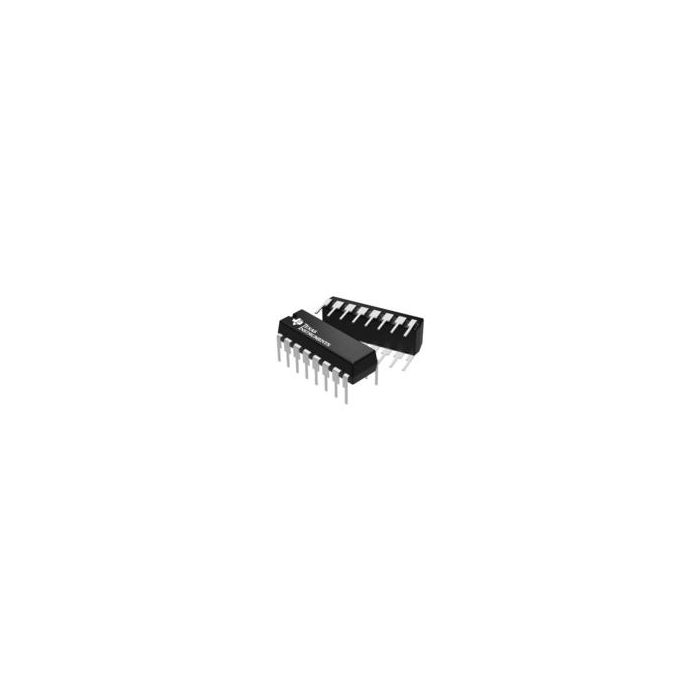

Binary Full Adder Single-Element 4-Bit 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • PCNs 39
  • MaskPart SN7483AN%
  • IntroductionDate Mar 01, 1974

Parametry

  • Absolute Propagation Delay Time (ns) 24
  • Logic Family TTL
  • Logic Function Binary Full Adder
  • Maximum High Level Output Current (mA) -0.8
  • Maximum Low Level Output Current (mA) 16
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 310
  • Maximum Propagation Delay Time @ Maximum CL (ns) 24@5V
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Bits 4
  • Number of Elements per Chip 1
  • Process Technology Bipolar
  • Propagation Delay Test Condition (pF) 15
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Binary Full Adder Single-Element 4-Bit 16-Pin PDIP Tube
