SN74180N
Do pobrania | Download |
---|---|
Main description | Parity Generator/Checker 9-Bit 1-Element 14-Pin PDIP Tube |

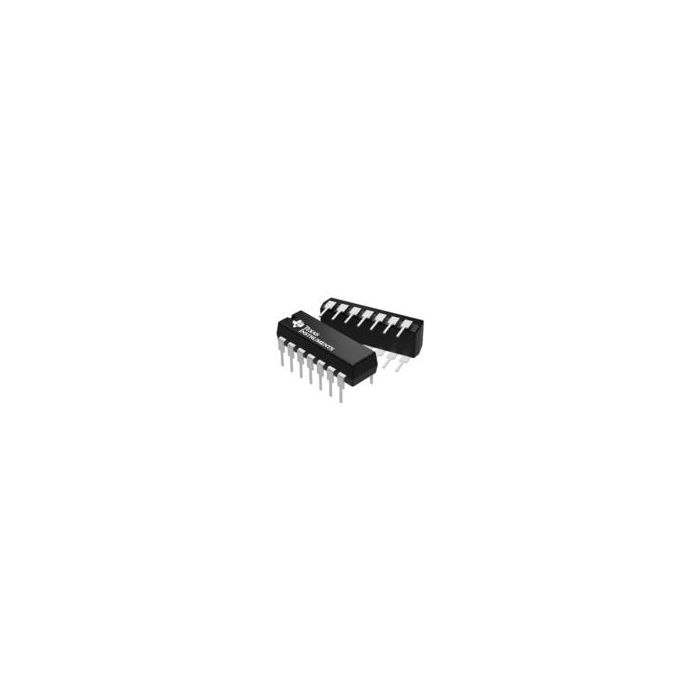

Parity Generator/Checker 9-Bit 1-Element 14-Pin PDIP Tube
Informacje podstawowe
- ProducentTexas Instruments
- EURoHSUnknown (2002/95/EC)
- Automotive No
Informacje dodatkowe
- Inventory 2
- PCNs 40
- MaskPart SN74180N%
- IntroductionDate Dec 01, 1972
Parametry
- Absolute Propagation Delay Time (ns) 68
- Logic Family TTL
- Logic Function Parity Generator/Checker
- Maximum High Level Output Current (mA) -0.8
- Maximum Low Level Output Current (mA) 16
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 68@5V
- Maximum Quiescent Current (uA) N/A
- Number of Bits 9
- Number of Elements per Chip 1
- Output Type N/A
- Process Technology Bipolar
- Supplier Temperature Grade Commercial
