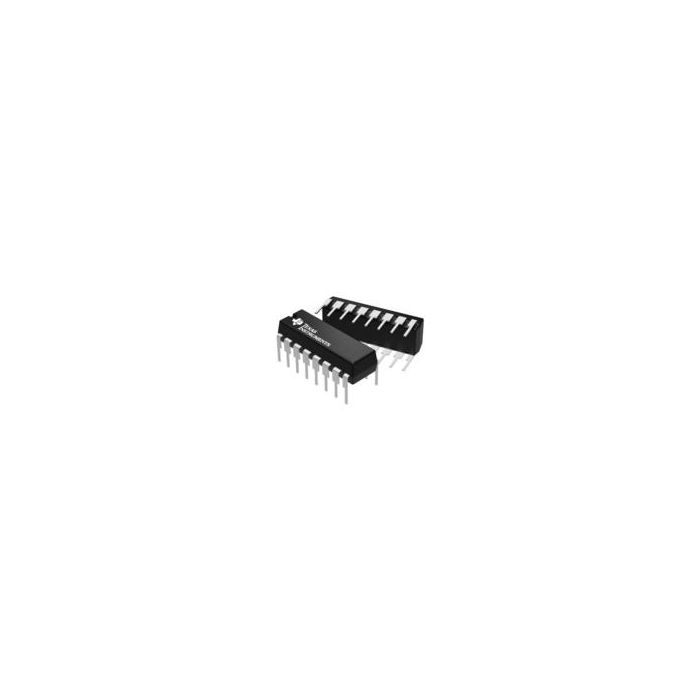

SN74147N

ProducentTexas InstrumentsEURoHSUnknown (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74147N_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74147N

Encoder 9 to 4 Priority Bipolar 16-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • PCNs 39
  • MaskPart SN74147N%
  • IntroductionDate Oct 01, 1976

Parametry

  • Absolute Propagation Delay Time (ns) 19
  • Cascading Capability No
  • Clock Controlling Signal No
  • Logic Family TTL
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 225(Typ)
  • Maximum Propagation Delay Time @ Maximum CL (ns) 19@5V
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Element Inputs 9
  • Number of Element Outputs 4
  • Number of Encoded Keys 0
  • Number of Input Enables per Element 0
  • Number of Output Enables per Element 0
  • Output Drive Capability -0.8mA/16mA
  • Output Type N/A
  • Process Technology Bipolar
  • Supplier Temperature Grade Commercial
  • Type Priority
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Encoder 9 to 4 Priority Bipolar 16-Pin PDIP Tube
