SN74122N

ProducentTexas InstrumentsEURoHSUnknown (2002/95/EC)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74122N_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74122N

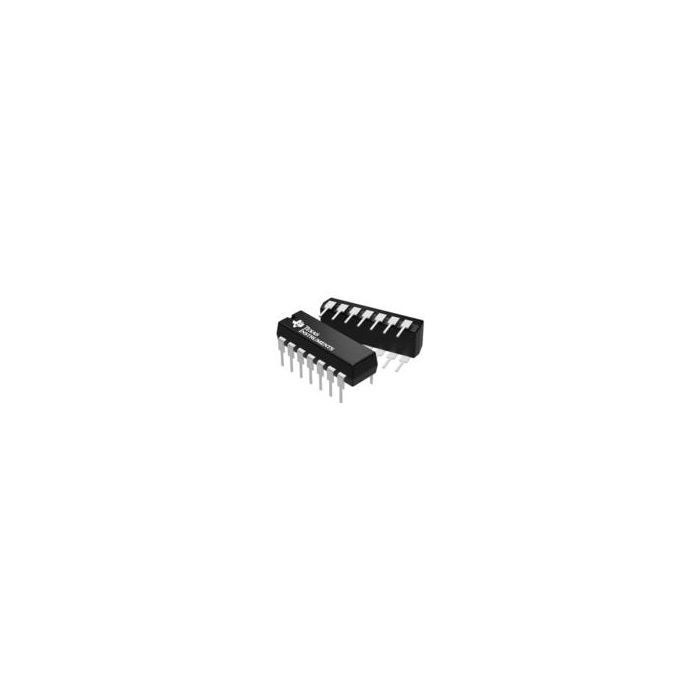

Monostable Multivibrator Single-Element 0°C 70°C 14-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSUnknown (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 1
  • PCNs 39
  • MaskPart SN74122N%
  • IntroductionDate Dec 01, 1983

Parametry

  • Absolute Propagation Delay Time (ns) 40
  • Logic Family TTL
  • Logic Function Monostable Multivibrator
  • Maximum High Level Output Current (mA) -0.8
  • Maximum Low Level Output Current (mA) 16
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 40@5V
  • Maximum Quiescent Current (mA) 23(Typ)
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Number of Elements per Chip 1
  • Process Technology Bipolar
  • Supplier Temperature Grade Commercial
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Monostable Multivibrator Single-Element 0°C 70°C 14-Pin PDIP Tube
