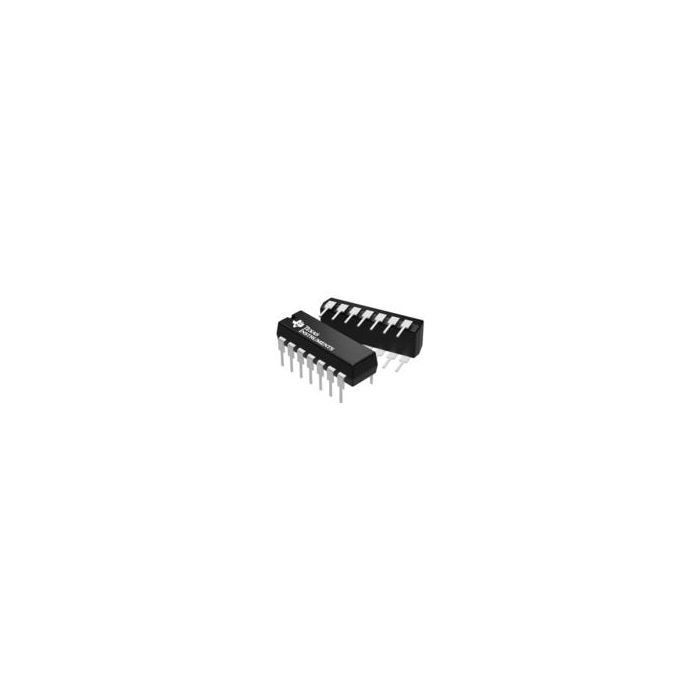

SN74121N

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN74121N_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN74121N

Monostable Multivibrator Single-Element 0°C 70°C 14-Pin PDIP Tube

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 14
  • Inventory 8
  • PCNs 49
  • MaskPart SN74121N%
  • IntroductionDate Jan 01, 2002
  • AliasParts SN74121NE4

Parametry

  • Absolute Propagation Delay Time (ns) 80
  • Logic Family TTL
  • Logic Function Monostable Multivibrator
  • Maximum High Level Output Current (mA) -0.4
  • Maximum Low Level Output Current (mA) 16
  • Maximum Operating Supply Voltage (V) 5.25
  • Maximum Operating Temperature (°C) 70
  • Maximum Propagation Delay Time @ Maximum CL (ns) 80@5V
  • Maximum Quiescent Current (mA) 13(Typ)
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 4.75
  • Minimum Operating Temperature (°C) 0
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Process Technology Bipolar
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Monostable Multivibrator Single-Element 0°C 70°C 14-Pin PDIP Tube
