SN65LVPE512RGER

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN65LVPE512RGER_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN65LVPE512RGER

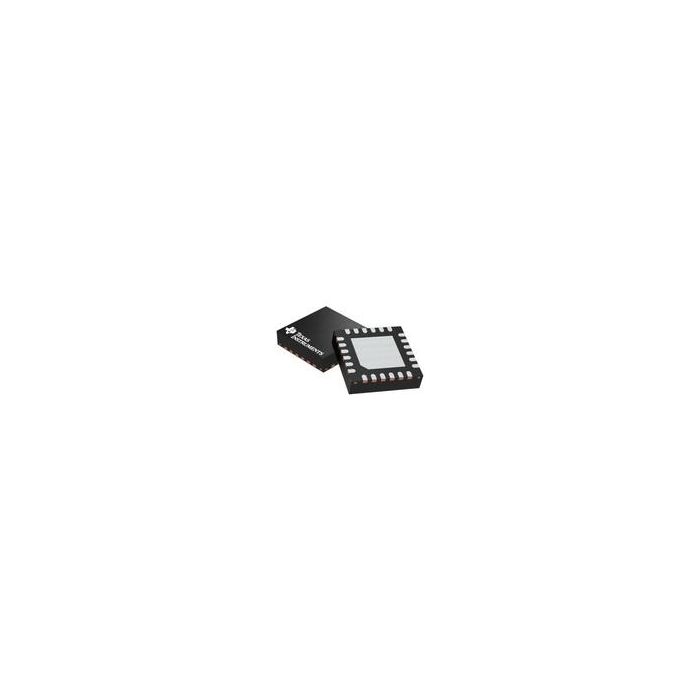

High Speed/Super Speed Dual Channel Redriver USB 3.0 3.3V T/R 24-Pin VQFN EP

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1
  • Inventory 3
  • PCNs 40
  • MaskPart SN65LVPE512RGE%

Parametry

  • Interface Type N/A
  • Maximum Data Rate (Mbps) 5000
  • Maximum Operating Frequency (MHz) N/A
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Minimum Operating Supply Voltage (V) 3
  • Minimum Operating Temperature (°C) -40
  • Protocols Supported USB 3.0
  • Supplier Temperature Grade N/A
  • Type Dual Channel Redriver
  • Typical Operating Supply Voltage (V) 3.3
  • Typical Supply Current (mA) 100
  • USB Speed Type High Speed|Super Speed
  • USB Transceiver No

Więcej informacji

Do pobrania Download
Main description High Speed/Super Speed Dual Channel Redriver USB 3.0 3.3V T/R 24-Pin VQFN EP
