SN65LVEL11DGKR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN65LVEL11DGKR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN65LVEL11DGKR

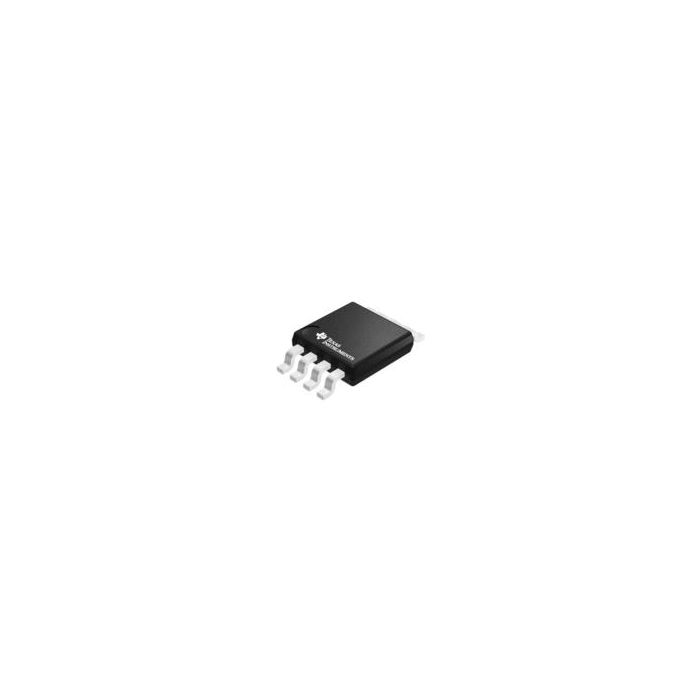

Clock Fanout Buffer 2-OUT 1-IN 1:2 8-Pin VSSOP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 157
  • Inventory 1
  • PCNs 41
  • MaskPart SN65LVEL11DGK%
  • IntroductionDate Jul 01, 2008

Parametry

  • Absolute Propagation Delay Time (ns) 0.35
  • Configuration N/R
  • Fanout 1:2
  • Input Logic Level ECL|PECL
  • Input Signal Type Differential
  • Maximum Data Rate (Gbps) N/A
  • Maximum Duty Cycle N/A
  • Maximum Input Frequency (MHz) 2900(Typ)
  • Maximum Operating Supply Voltage (V) -3.8|3.8
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Frequency (MHz) 2900(Typ)
  • Maximum Output Skew (ps) 5
  • Maximum Power Dissipation (mW) 527
  • Maximum Propagation Delay Time @ Maximum CL (ns) 0.35@3.3V
  • Maximum Quiescent Current (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 25
  • Minimum Input Frequency (MHz) N/A
  • Minimum Operating Supply Voltage (V) -3|3
  • Minimum Operating Temperature (°C) -40
  • Minimum Output Frequency (MHz) N/A
  • Minimum Storage Temperature (°C) -65
  • Number of Clock Inputs 1
  • Number of Outputs per Chip 2
  • Output Logic Level ECL|PECL
  • Output Signal Type Differential
  • Output Supply Voltage N/A
  • Power Supply Type Single
  • Process Technology N/A
  • Spread Spectrum No
  • Supplier Temperature Grade N/A
  • Type Fanout Buffer
  • Typical Additive Jitter (RMS) (ps) N/A
  • Typical Operating Supply Voltage (V) -3.3|3.3

Więcej informacji

Do pobrania Download
Main description Clock Fanout Buffer 2-OUT 1-IN 1:2 8-Pin VSSOP T/R
