SN65LVDS16DRFRG4

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN65LVDS16DRFRG4_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN65LVDS16DRFRG4

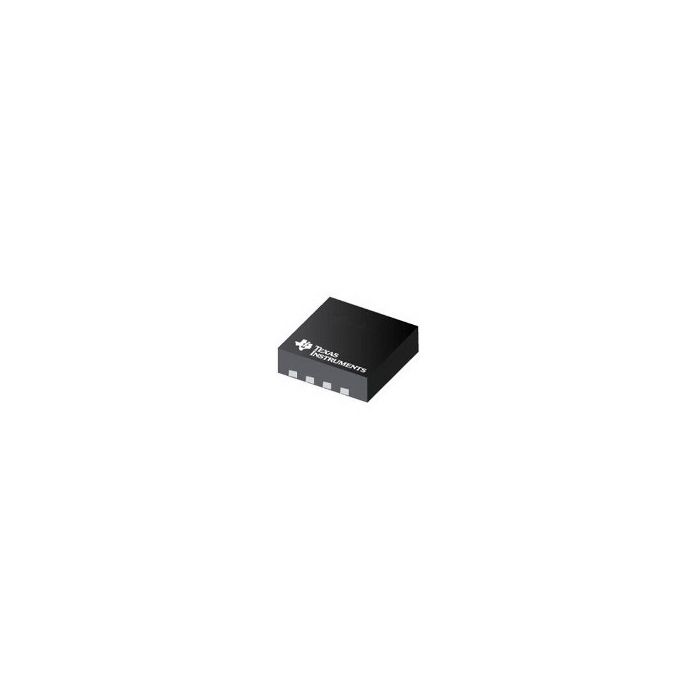

LVDS Buffer 0.454V 8-Pin WSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • PCNs 39
  • MaskPart SN65LVDS16DRFRG4%
  • IntroductionDate May 18, 2005

Parametry

  • Differential Input High Threshold Voltage (V) N/A
  • Differential Input Low Threshold Voltage (V) N/A
  • Function Buffer
  • Input Signal Type LVCMOS
  • Maximum Differential Output Voltage (V) 0.454
  • Maximum Operating Frequency (MHz) N/A
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Minimum Operating Frequency (MHz) N/A
  • Minimum Operating Supply Voltage (V) 2.375
  • Minimum Operating Temperature (°C) -30
  • Number of Drivers 1
  • Number of Elements per Chip 1
  • Number of Receivers 1
  • Output Signal Type LVCMOS
  • Supplier Temperature Grade N/A
  • Transmission Data Rate (Mbps) N/A
  • Typical Operating Supply Voltage (V) 1.8

Więcej informacji

Do pobrania Download
Main description LVDS Buffer 0.454V 8-Pin WSON EP T/R
