SN65LVCP408PAPR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SN65LVCP408PAPR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / SN65LVCP408PAPR

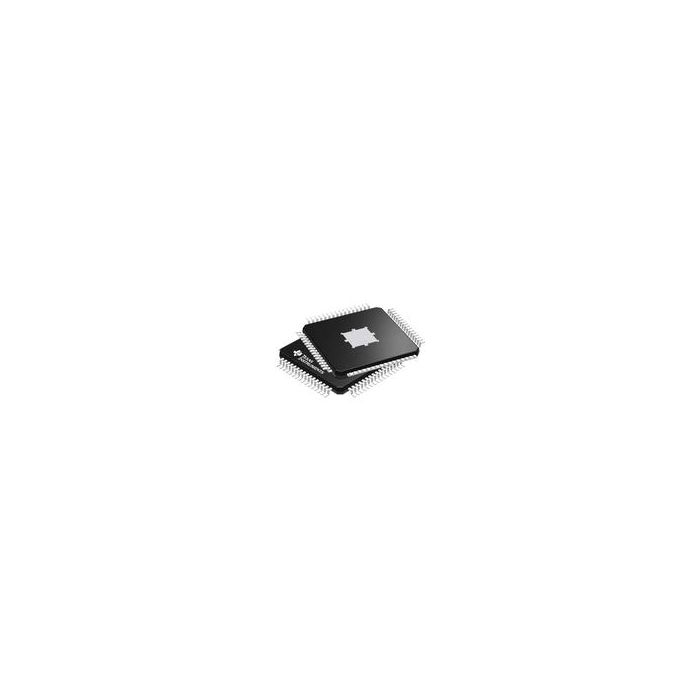

Digital Crosspoint Single 8x8 4.25Gbps 64-Pin HTQFP EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 4
  • PCNs 42
  • GIDEP-Alerts 1
  • MaskPart SN65LVCP408PAP%
  • IntroductionDate Oct 01, 2008

Parametry

  • Array Configuration 8x8
  • Cascading Capability No
  • Differential Data Transmission Yes
  • Input Level CML|VML
  • Line Code No
  • Maximum Data Rate (Gbps) 4.25
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Single Supply Voltage (V) 3.465
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 3.135
  • Number of Arrays 1
  • On-Chip Buffers No
  • On-Chip Decoder No
  • On-Chip Latch Circuit No
  • On-Chip MUX/DEMUX No
  • Operating Supply Voltage (V) 3.3
  • Output Level VML
  • Power Supply Type Single
  • Programmability No
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3.3

Więcej informacji

Do pobrania Download
Main description Digital Crosspoint Single 8x8 4.25Gbps 64-Pin HTQFP EP T/R
