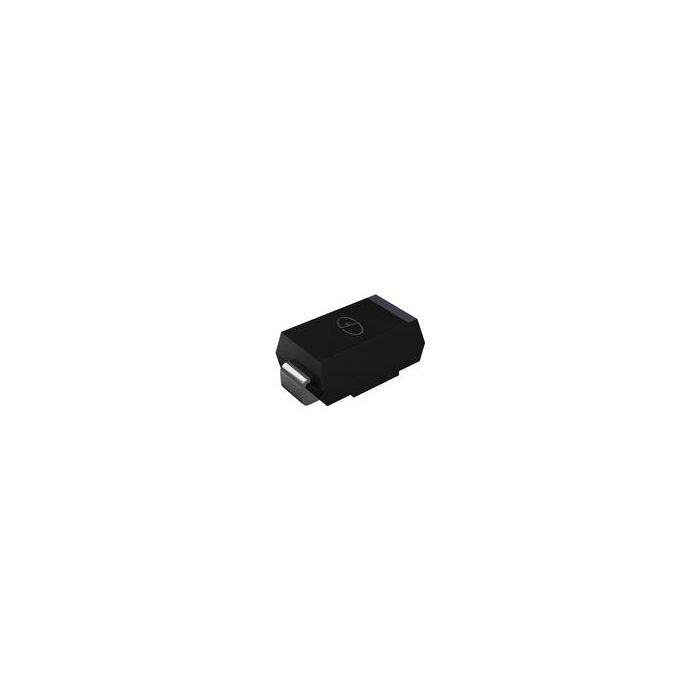

SMCJ7.0CA

ProducentGood-Ark SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMCJ7.0CA_GOOD-ARK_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / SMCJ7.0CA

Diode TVS Single Bi-Dir 7V 1.5KW 2-Pin SMC

Informacje podstawowe

  • ProducentGood-Ark Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • MaskPart SMCJ7.0CA%
  • IntroductionDate Apr 23, 2002

Parametry

  • Capacitance Value (pF) N/A
  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Breakdown Voltage (V) 8.6
  • Maximum Clamping Voltage (V) 12
  • Maximum Forward Voltage (V) N/A
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 125
  • Maximum Reverse Leakage Current (uA) 400
  • Maximum Reverse Stand-Off Voltage (V) 7
  • Maximum Storage Temperature (°C) 150
  • Minimum Breakdown Voltage (V) 7.78
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Forward Surge Current (A) 200
  • Peak Pulse Power Dissipation (W) 1500(Min)
  • Supplier Temperature Grade N/A
  • Test Current (mA) 10
  • Tradename N/A

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Bi-Dir 7V 1.5KW 2-Pin SMC
