SMCJ5.0A-TR
Do pobrania | Download |
---|---|

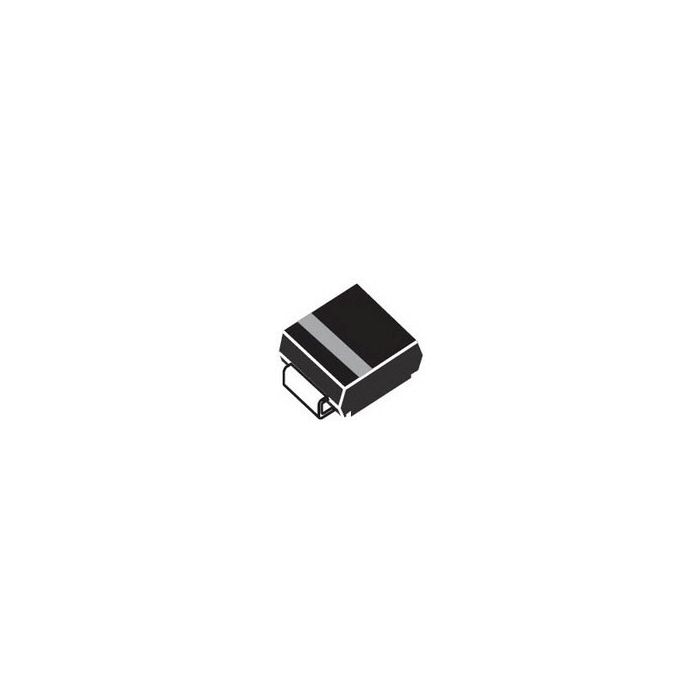

Main description | Diode TVS Single Uni-Dir 5V 1.5KW 2-Pin SMC T/R |
Diode TVS Single Uni-Dir 5V 1.5KW 2-Pin SMC T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 426
- Inventory 8
- PCNs 17
- MaskPart SMCJ5.0A%
- IntroductionDate Aug 30, 1999
Parametry
- Configuration Single
- Direction Type Uni-Directional
- Maximum Clamping Voltage (V) 13.4
- Maximum Peak Pulse Current (A) 746
- Maximum Reverse Leakage Current (uA) 500
- Maximum Reverse Stand-Off Voltage (V) 5
- Maximum Storage Temperature (°C) 150
- Minimum Breakdown Voltage (V) 6.4
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 1500
- Supplier Temperature Grade N/A
- Test Current (mA) 10
