SMCJ16AQ-13-F

ProducentDiodes IncorporatedEURoHSYes with Exemption (2011/65/EU, 2015/863).
Powiadom mnie gdy produkt będzie dostępny
SKU
SMCJ16AQ-13-F_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / SMCJ16AQ-13-F

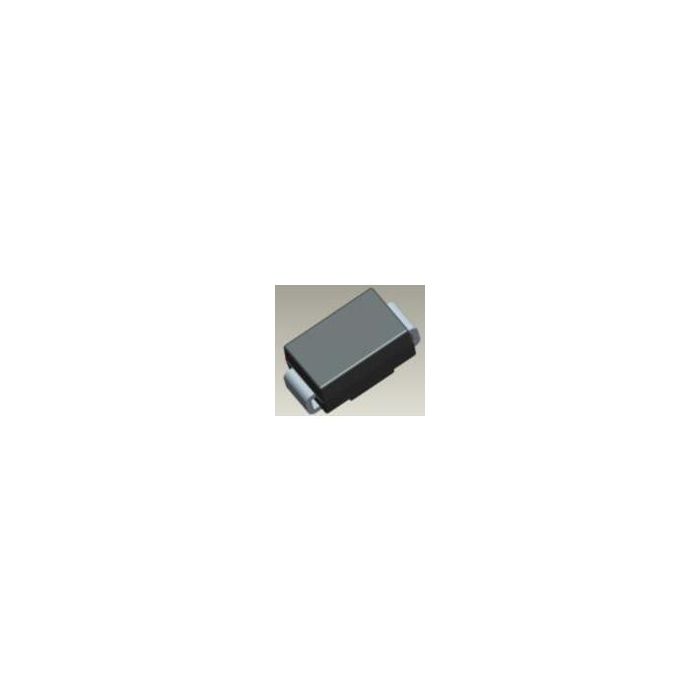

Diode TVS Single Uni-Dir 16V 1.5KW 2-Pin SMC T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)

Informacje dodatkowe

  • Inventory 4
  • PCNs 15
  • GIDEP-Alerts 1
  • MaskPart SMCJ16AQ%F

Parametry

  • Capacitance Value (pF) N/A
  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Breakdown Voltage (V) 19.7
  • Maximum Clamping Voltage (V) 26
  • Maximum Forward Voltage (V) 3.5
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 57.7
  • Maximum Reverse Leakage Current (uA) 5
  • Maximum Reverse Stand-Off Voltage (V) 16
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 17.8
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Forward Surge Current (A) 200
  • Peak Pulse Power Dissipation (W) 1500
  • Supplier Temperature Grade Automotive
  • Test Current (mA) 1
  • Tradename N/A

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 16V 1.5KW 2-Pin SMC T/R
