SMCJ15A-TR

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMCJ15A-TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / SMCJ15A-TR

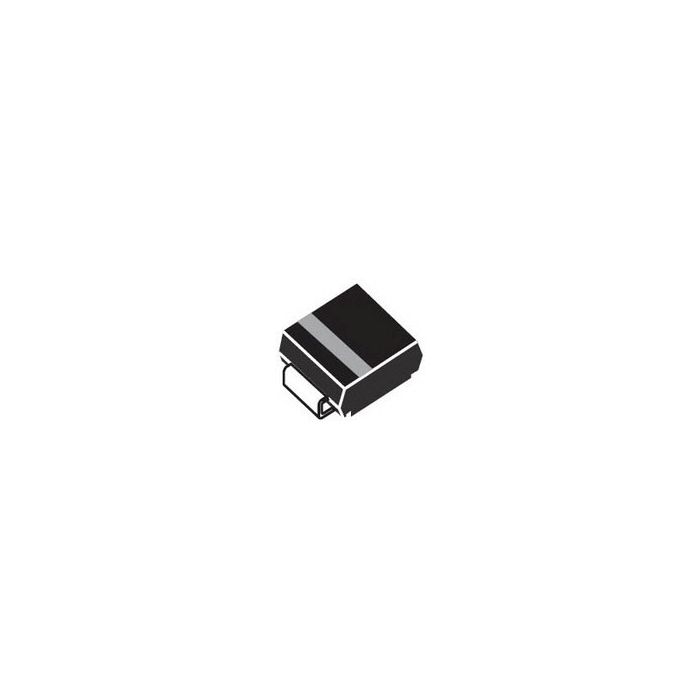

Diode TVS Single Uni-Dir 15V 1.5KW 2-Pin SMC T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 746
  • Inventory 5
  • PCNs 17
  • MaskPart SMCJ15A%
  • IntroductionDate Aug 30, 1999

Parametry

  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Clamping Voltage (V) 32.5
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 308
  • Maximum Reverse Leakage Current (uA) 0.2
  • Maximum Reverse Stand-Off Voltage (V) 15
  • Maximum Storage Temperature (°C) 150
  • Minimum Breakdown Voltage (V) 16.7
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Pulse Power Dissipation (W) 1500
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 15V 1.5KW 2-Pin SMC T/R
