SMCJ13A

ProducentGood-Ark SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMCJ13A_GOOD-ARK_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / SMCJ13A

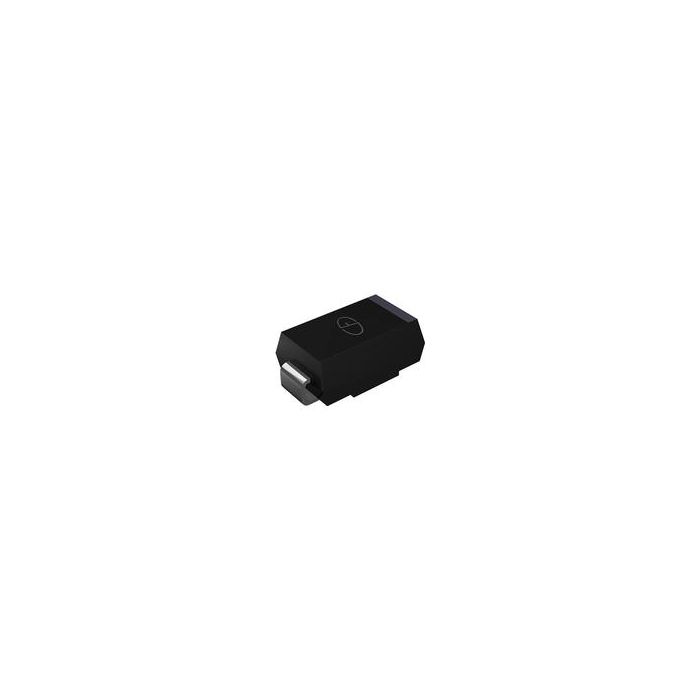

Diode TVS Single Uni-Dir 13V 1.5KW 2-Pin SMC

Informacje podstawowe

  • ProducentGood-Ark Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 630
  • MaskPart SMCJ13A%
  • IntroductionDate Apr 23, 2002

Parametry

  • Capacitance Value (pF) N/A
  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Breakdown Voltage (V) 15.9
  • Maximum Clamping Voltage (V) 21.5
  • Maximum Forward Voltage (V) N/A
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 69.8
  • Maximum Reverse Leakage Current (uA) 1
  • Maximum Reverse Stand-Off Voltage (V) 13
  • Maximum Storage Temperature (°C) 150
  • Minimum Breakdown Voltage (V) 14.4
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Forward Surge Current (A) 200
  • Peak Pulse Power Dissipation (W) 1500(Min)
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1
  • Tradename N/A

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 13V 1.5KW 2-Pin SMC
