SMCJ10A-TP

ProducentMicro Commercial ComponentsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMCJ10A-TP_MICRO_COMMERCIAL_COMPONENTS
0,00 zł

Zapytaj o ten produkt

Opis / SMCJ10A-TP

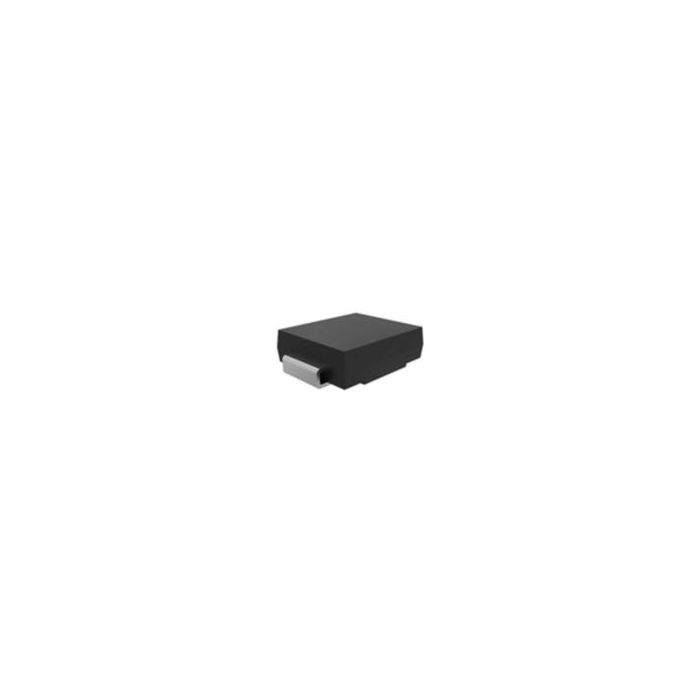

Diode TVS Single Uni-Dir 10V 1.5KW 2-Pin SMC T/R

Informacje podstawowe

  • ProducentMicro Commercial Components
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 656
  • Inventory 2
  • PCNs 1
  • MaskPart SMCJ10A%
  • IntroductionDate Feb 13, 2001

Parametry

  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Clamping Voltage (V) 17
  • Maximum Forward Voltage (V) 3.5
  • Maximum Operating Temperature (°C) 175
  • Maximum Peak Pulse Current (A) 88.3
  • Maximum Reverse Leakage Current (uA) 5
  • Maximum Reverse Stand-Off Voltage (V) 10
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 11.1
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 175
  • Peak Forward Surge Current (A) 200
  • Peak Pulse Power Dissipation (W) 1500(Min)
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 10V 1.5KW 2-Pin SMC T/R
