SMC30J6.5A
Do pobrania | Download |
---|---|

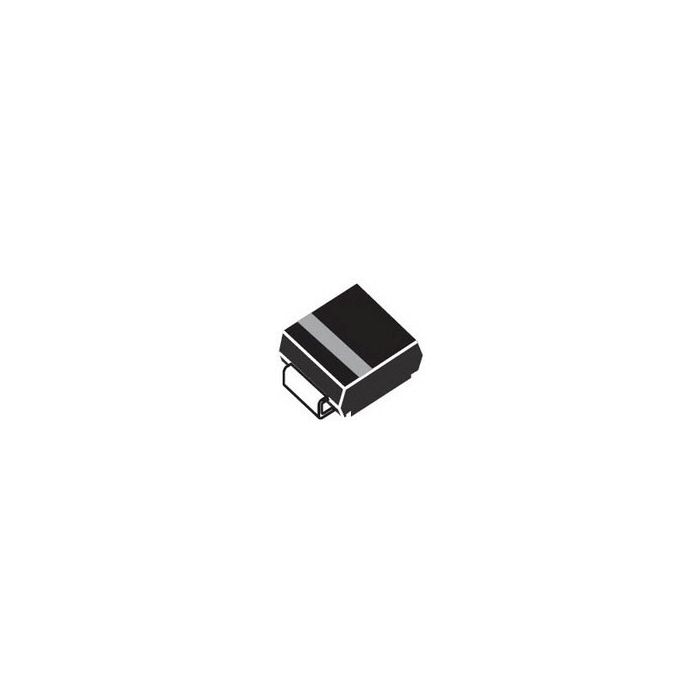

Main description | Diode TVS Single Uni-Dir 6.5V 3KW 2-Pin SMC T/R |
Diode TVS Single Uni-Dir 6.5V 3KW 2-Pin SMC T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 678
- Inventory 5
- PCNs 10
- MaskPart SMC30J6.5A%
- IntroductionDate Jul 28, 2011
Parametry
- Capacitance Value (pF) N/A
- Configuration Single
- Direction Type Uni-Directional
- Maximum Breakdown Voltage (V) N/A
- Maximum Clamping Voltage (V) 11.2
- Maximum Peak Pulse Current (A) 268
- Maximum Reverse Leakage Current (uA) 250
- Maximum Reverse Stand-Off Voltage (V) 6.5
- Maximum Storage Temperature (°C) 175
- Minimum Breakdown Voltage (V) 7.2
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 3000
- Supplier Temperature Grade N/A
- Test Current (mA) 10
- Tradename Transil™
