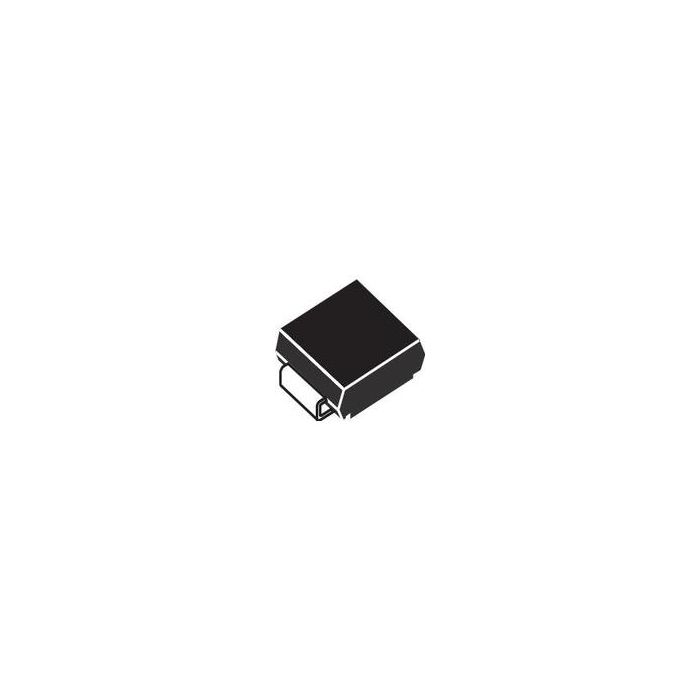

SMC30J40CA

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMC30J40CA_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / SMC30J40CA

Diode TVS Single Bi-Dir 40V 3KW 2-Pin SMC T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 615
  • Inventory 2
  • PCNs 10
  • MaskPart SMC30J40CA%

Parametry

  • Capacitance Value (pF) N/A
  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Breakdown Voltage (V) N/A
  • Maximum Clamping Voltage (V) 64.5
  • Maximum Operating Temperature (°C) 175
  • Maximum Peak Pulse Current (A) 43.5
  • Maximum Reverse Leakage Current (uA) 0.2
  • Maximum Reverse Stand-Off Voltage (V) 40
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 44.4
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 175
  • Peak Pulse Power Dissipation (W) 3000
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1
  • Tradename Transil™

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Bi-Dir 40V 3KW 2-Pin SMC T/R
