SMBJ85CA-TR

ProducentSTMicroelectronicsEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMBJ85CA-TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / SMBJ85CA-TR

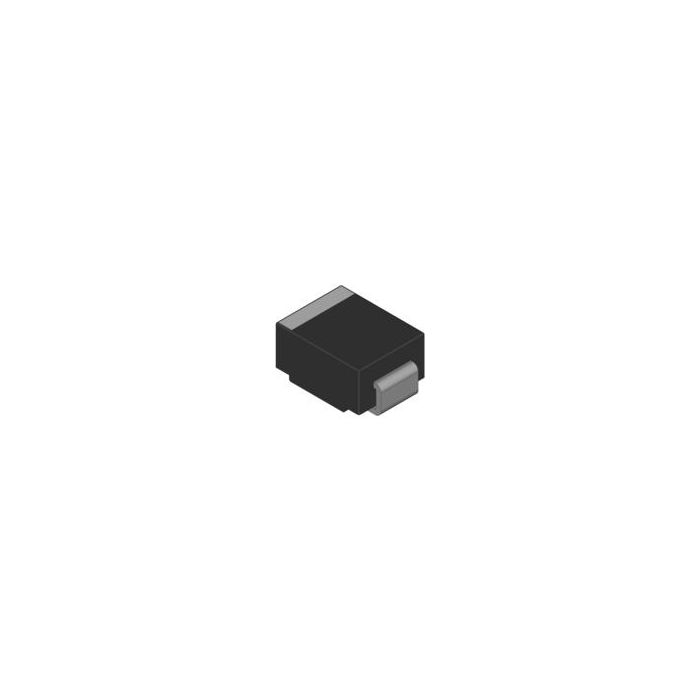

Diode TVS Single Bi-Dir 85V 600W 2-Pin SMB T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 366
  • Inventory 8
  • PCNs 17
  • MaskPart SMBJ85CA%
  • IntroductionDate Jan 28, 1998

Parametry

  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Clamping Voltage (V) 178
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 22.5
  • Maximum Reverse Leakage Current (uA) 0.2
  • Maximum Reverse Stand-Off Voltage (V) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Breakdown Voltage (V) 94
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Pulse Power Dissipation (W) 600
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Bi-Dir 85V 600W 2-Pin SMB T/R
