SMBJ70CA-TR
Do pobrania | Download |
---|---|

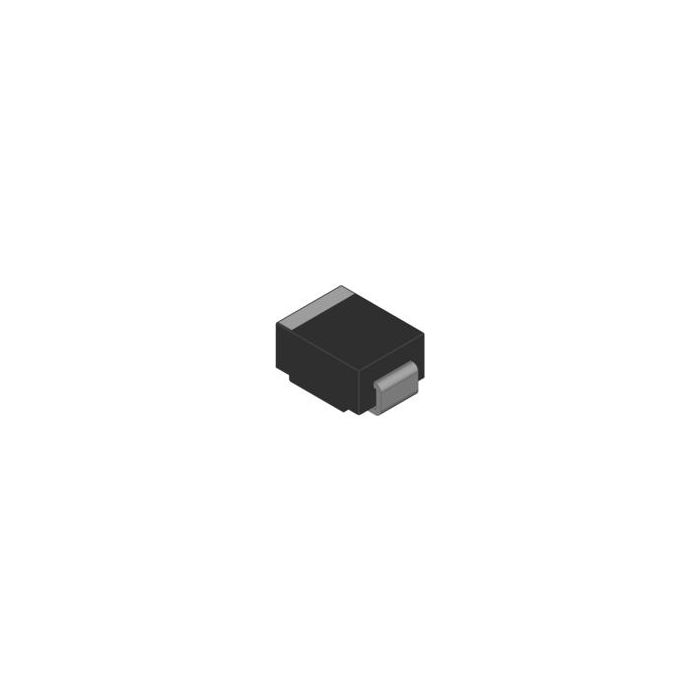

Main description | Diode TVS Single Bi-Dir 70V 600W 2-Pin SMB T/R |
Diode TVS Single Bi-Dir 70V 600W 2-Pin SMB T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 295
- Inventory 7
- PCNs 20
- MaskPart SMBJ70CA%
- IntroductionDate Jan 28, 1998
Parametry
- Configuration Single
- Direction Type Bi-Directional
- Maximum Clamping Voltage (V) 146
- Maximum Peak Pulse Current (A) 27
- Maximum Reverse Leakage Current (uA) 0.2
- Maximum Reverse Stand-Off Voltage (V) 70
- Maximum Storage Temperature (°C) 150
- Minimum Breakdown Voltage (V) 77.8
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 600
- Supplier Temperature Grade N/A
- Test Current (mA) 1
