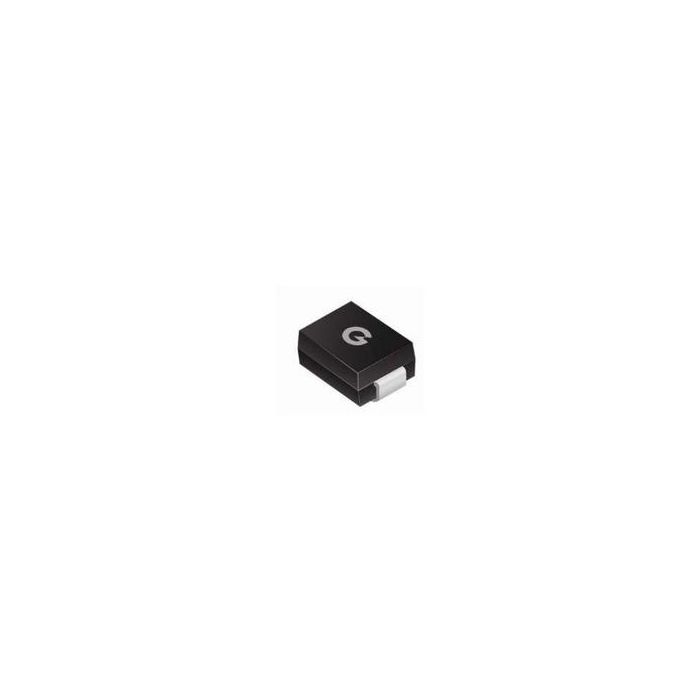

SMBJ170CA

ProducentChangzhou Galaxy Century Microelectronics Co.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMBJ170CA_CHANGZHOU_GALAXY_CENTURY_MICROELECTRONICS_CO.,LTD
0,00 zł

Zapytaj o ten produkt

Opis / SMBJ170CA

Diode TVS Single Bi-Dir 170V 600W 2-Pin SMB

Informacje podstawowe

  • ProducentChangzhou Galaxy Century Microelectronics Co.,Ltd
  • EURoHSYes (2002/95/EC)
  • Automotive No

Informacje dodatkowe

  • Crosses 333
  • PCNs 1
  • MaskPart SMBJ170CA%
  • IntroductionDate Jun 19, 2003

Parametry

  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Clamping Voltage (V) 275
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 2.2
  • Maximum Reverse Leakage Current (uA) 5
  • Maximum Reverse Stand-Off Voltage (V) 170
  • Minimum Breakdown Voltage (V) 189
  • Minimum Operating Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Pulse Power Dissipation (W) 600(Min)
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Bi-Dir 170V 600W 2-Pin SMB
