SMBJ170A-E3/5B

ProducentVishayEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMBJ170A-E3_5B_VISHAY
0,00 zł

Zapytaj o ten produkt

Opis / SMBJ170A-E3/5B

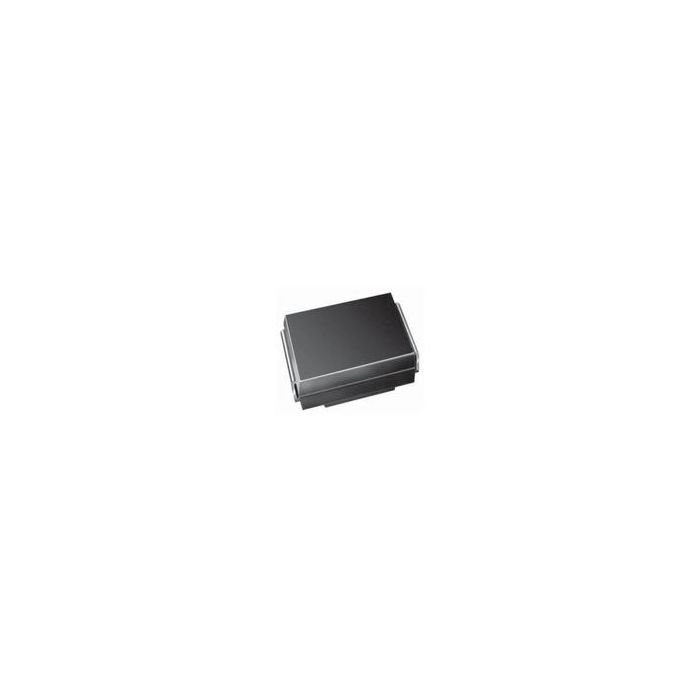

Diode TVS Single Uni-Dir 170V 600W 2-Pin SMB T/R

Informacje podstawowe

  • ProducentVishay
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 271
  • Inventory 2
  • PCNs 24
  • GIDEP-Alerts 1
  • MaskPart SMBJ170AE3%
  • IntroductionDate Jul 04, 2006

Parametry

  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Breakdown Voltage (V) 209
  • Maximum Clamping Voltage (V) 275
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 2.2
  • Maximum Reverse Leakage Current (uA) 1
  • Maximum Reverse Stand-Off Voltage (V) 170
  • Maximum Storage Temperature (°C) 150
  • Minimum Breakdown Voltage (V) 189
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Pulse Power Dissipation (W) 600
  • Supplier Temperature Grade Commercial
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 170V 600W 2-Pin SMB T/R
