SMBJ154A-TR
Do pobrania | Download |
---|---|
Main description | Diode TVS Single Uni-Dir 154V 600W 2-Pin SMB T/R |

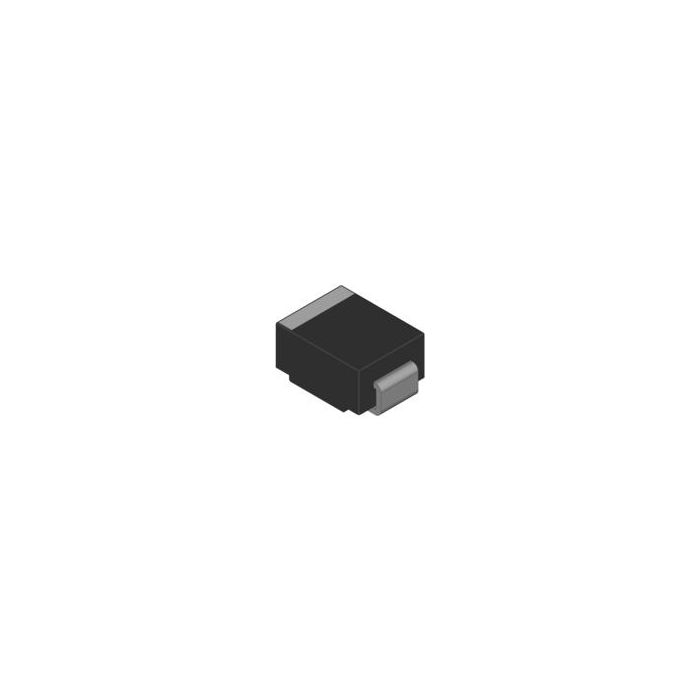

Diode TVS Single Uni-Dir 154V 600W 2-Pin SMB T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 540
- Inventory 8
- PCNs 18
- MaskPart SMBJ154A%
- IntroductionDate Jan 28, 1998
Parametry
- Configuration Single
- Direction Type Uni-Directional
- Maximum Clamping Voltage (V) 317
- Maximum Peak Pulse Current (A) 12.6
- Maximum Reverse Leakage Current (uA) 0.2
- Maximum Reverse Stand-Off Voltage (V) 154
- Maximum Storage Temperature (°C) 150
- Minimum Breakdown Voltage (V) 171
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 600
- Supplier Temperature Grade N/A
- Test Current (mA) 1
