SMBJ150CA-M3/52
Do pobrania | Download |
---|---|
Main description | Diode TVS Single Bi-Dir 150V 600W 2-Pin SMB T/R |

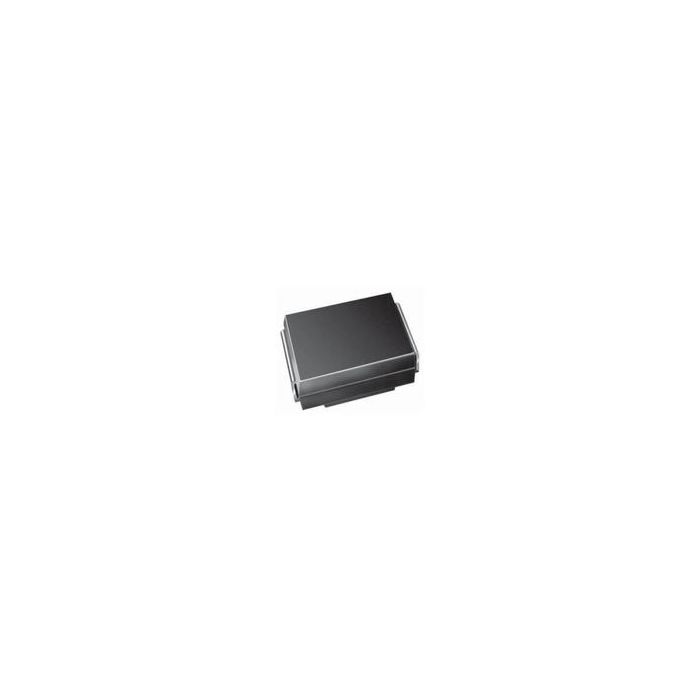

Diode TVS Single Bi-Dir 150V 600W 2-Pin SMB T/R
Informacje podstawowe
- ProducentVishay
- EURoHSYes with Exemption (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 296
- PCNs 22
- MaskPart SMBJ150CAM3%
Parametry
- Configuration Single
- Direction Type Bi-Directional
- Maximum Clamping Voltage (V) 243
- Maximum Peak Pulse Current (A) 2.5
- Maximum Reverse Leakage Current (uA) 1
- Maximum Reverse Stand-Off Voltage (V) 150
- Maximum Storage Temperature (°C) 150
- Minimum Breakdown Voltage (V) 167
- Minimum Storage Temperature (°C) -55
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 600
- Supplier Temperature Grade Commercial
- Test Current (mA) 1
