SMBJ120CAT13

ProducentLittelfuseEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMBJ120CAT13_LITTELFUSE
0,00 zł

Zapytaj o ten produkt

Opis / SMBJ120CAT13

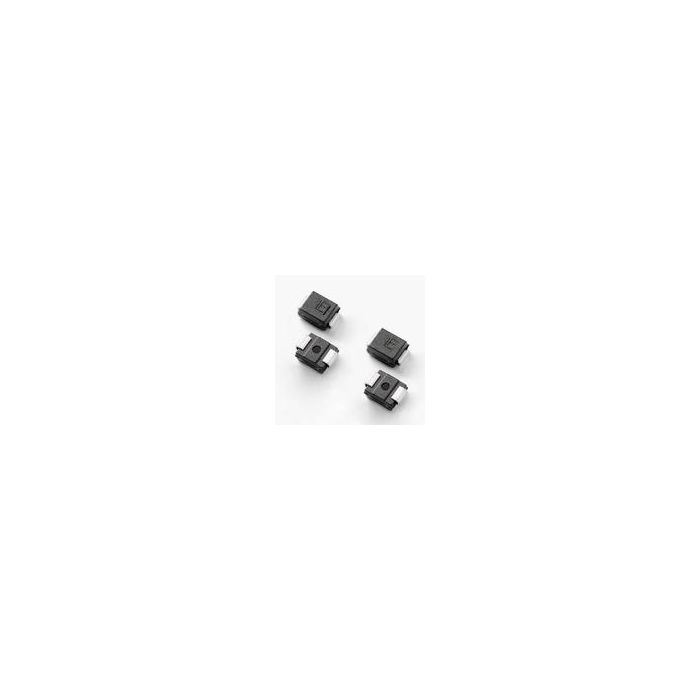

Diode TVS Single Bi-Dir 120V 600W 2-Pin SMB

Informacje podstawowe

  • ProducentLittelfuse
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 210
  • PCNs 20
  • MaskPart SMBJ120CAT13%
  • EnablingEnergyEfficiency No
  • SupplierUrl http://www.littelfuse.com/searchresults.html?Ntt=SMBJ120CAT13

Parametry

  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Clamping Voltage (V) 193
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 3.1
  • Maximum Reverse Leakage Current (uA) 5
  • Maximum Reverse Stand-Off Voltage (V) 120
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 133
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -65 to 150
  • Peak Pulse Power Dissipation (W) 600
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Bi-Dir 120V 600W 2-Pin SMB
