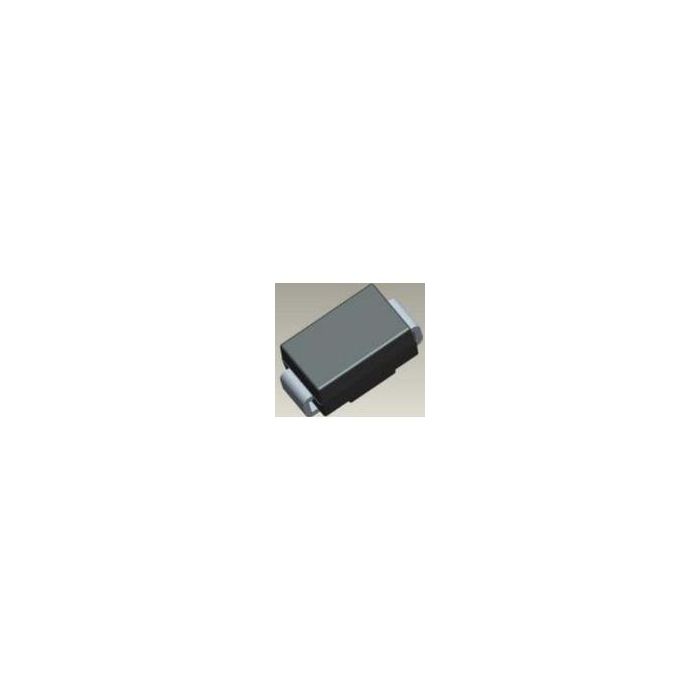

SMAJ78CA-13-F

ProducentDiodes IncorporatedEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMAJ78CA-13-F_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / SMAJ78CA-13-F

Diode TVS Single Bi-Dir 78V 400W 2-Pin SMA T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 376
  • Inventory 4
  • PCNs 23
  • GIDEP-Alerts 3
  • MaskPart SMAJ78CA%F
  • IntroductionDate Aug 21, 2002

Parametry

  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Breakdown Voltage (V) 95.8
  • Maximum Clamping Voltage (V) 126
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 3.2
  • Maximum Reverse Leakage Current (uA) 5
  • Maximum Reverse Stand-Off Voltage (V) 78
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 86.7
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Pulse Power Dissipation (W) 400
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Bi-Dir 78V 400W 2-Pin SMA T/R
