SMAJ160A

ProducentGood-Ark SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMAJ160A_GOOD-ARK_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / SMAJ160A

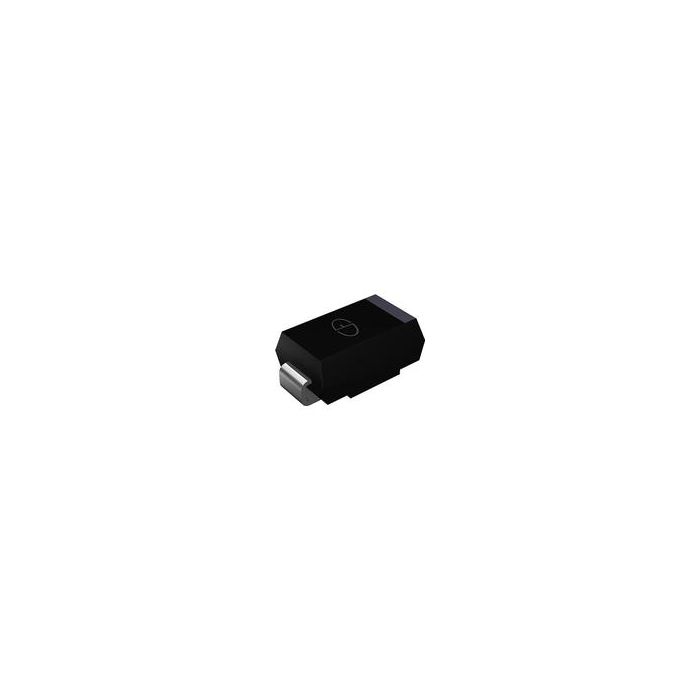

Diode TVS Single Uni-Dir 160V 400W 2-Pin SMA

Informacje podstawowe

  • ProducentGood-Ark Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 281
  • MaskPart SMAJ160A%
  • IntroductionDate Apr 23, 2002

Parametry

  • Capacitance Value (pF) N/A
  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Breakdown Voltage (V) 197
  • Maximum Clamping Voltage (V) 259
  • Maximum Forward Voltage (V) N/A
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 1.2
  • Maximum Reverse Leakage Current (uA) 1
  • Maximum Reverse Stand-Off Voltage (V) 160
  • Maximum Storage Temperature (°C) 150
  • Minimum Breakdown Voltage (V) 178
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Forward Surge Current (A) 40
  • Peak Pulse Power Dissipation (W) 400
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1
  • Tradename N/A

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 160V 400W 2-Pin SMA
