SMAJ110CA
Do pobrania | Download |
---|---|

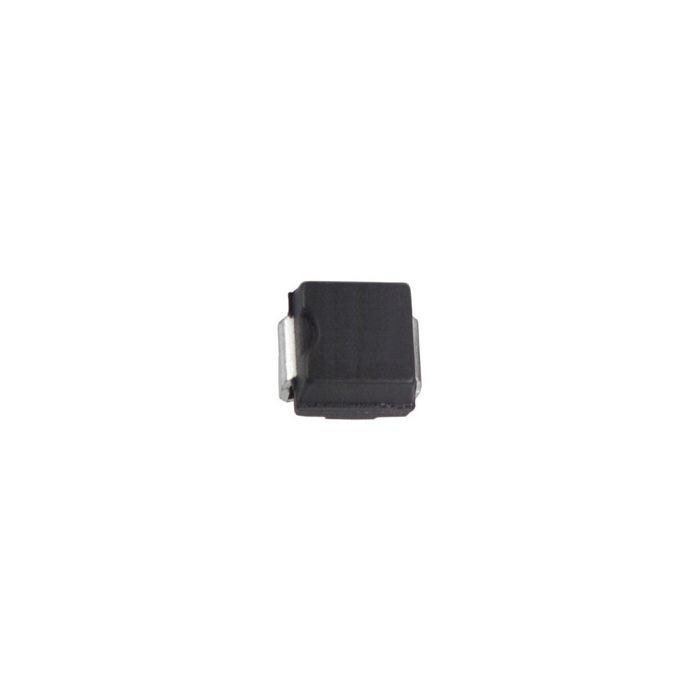

Main description | Diode TVS Single Bi-Dir 94V 400W 2-Pin SMA |
Diode TVS Single Bi-Dir 94V 400W 2-Pin SMA
Informacje podstawowe
- ProducentLision Technology Inc
- EURoHSUnknown (2011/65/EU)
- Automotive Unknown
Informacje dodatkowe
- Crosses 245
- MaskPart SMAJ110CA%
- IntroductionDate Jan 01, 2000
Parametry
- Configuration Single
- Direction Type Bi-Directional
- Maximum Breakdown Voltage (V) 116
- Maximum Clamping Voltage (V) 152
- Maximum Peak Pulse Current (A) 2.6
- Maximum Reverse Leakage Current (uA) 5
- Maximum Reverse Stand-Off Voltage (V) 94
- Maximum Storage Temperature (°C) N/A
- Minimum Breakdown Voltage (V) 105
- Minimum Storage Temperature (°C) N/A
- Number of Elements per Chip 1
- Peak Pulse Power Dissipation (W) 400
- Supplier Temperature Grade N/A
- Test Current (mA) 1
