SMAJ110A-T7

ProducentLittelfuseEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
SMAJ110A-T7_LITTELFUSE
0,00 zł

Zapytaj o ten produkt

Opis / SMAJ110A-T7

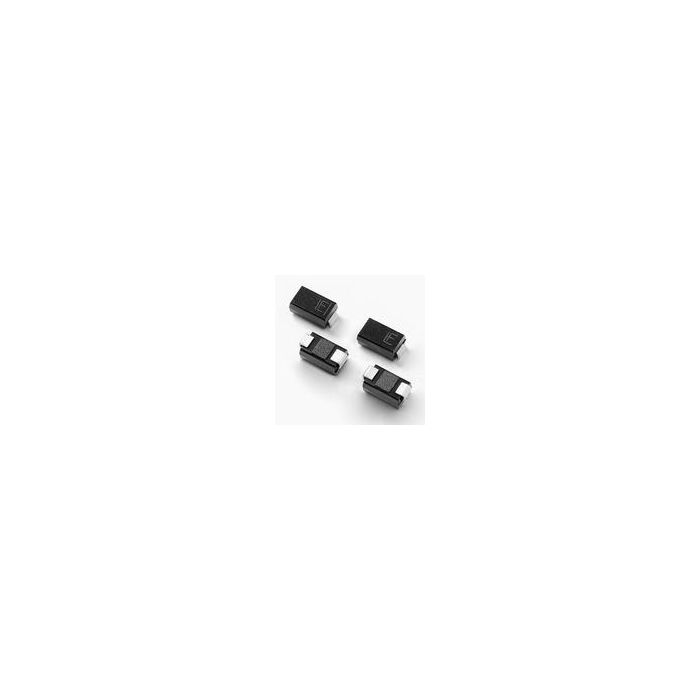

Diode TVS Single Uni-Dir 110V 400W 2-Pin SMA

Informacje podstawowe

  • ProducentLittelfuse
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 297
  • PCNs 20
  • MaskPart SMAJ110AT7%
  • IntroductionDate May 11, 2005
  • EnablingEnergyEfficiency No
  • SupplierUrl http://www.littelfuse.com/searchresults.html?Ntt=SMAJ110A-T7

Parametry

  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Breakdown Voltage (V) 135
  • Maximum Clamping Voltage (V) 177
  • Maximum Operating Temperature (°C) 150
  • Maximum Peak Pulse Current (A) 2.3
  • Maximum Reverse Leakage Current (uA) 1
  • Maximum Reverse Stand-Off Voltage (V) 110
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 122
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -65 to 150
  • Peak Pulse Power Dissipation (W) 400
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 110V 400W 2-Pin SMA
