Si3865CDV
Do pobrania | Download |
---|---|
Main description | Power Switch Hi Side 1-OUT 1A 0.1Ohm 6-Pin TSOP |

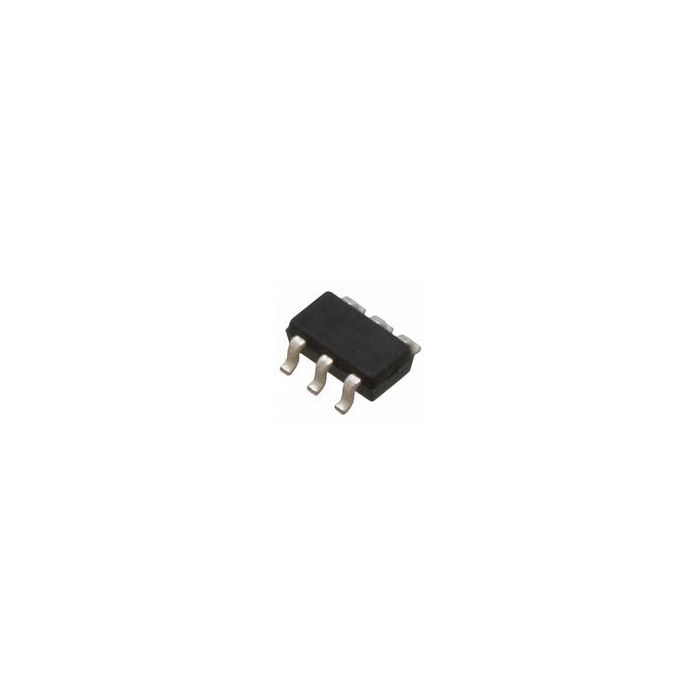

Power Switch Hi Side 1-OUT 1A 0.1Ohm 6-Pin TSOP
Informacje podstawowe
- ProducentVishay
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 15
- PCNs 22
- MaskPart Si3865CDV%
- IntroductionDate Nov 20, 2008
Parametry
- Interface Type N/A
- Maximum Input Voltage (V) 12
- Maximum Power Dissipation (mW) 830
- Maximum Propagation Delay Time (ns) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 1.8
- Minimum Output Current (A) 1
- Minimum Storage Temperature (°C) -55
- Number of Outputs 1
- Output Voltage Range (V) N/A
- Supplier Temperature Grade N/A
- Supply Current (mA) N/A
- Switch On Resistance (Ohm) 0.1
- Type High Side
