S34ML04G200TFI003

ProducentCypress SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
S34ML04G200TFI003_CYPRESS_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / S34ML04G200TFI003

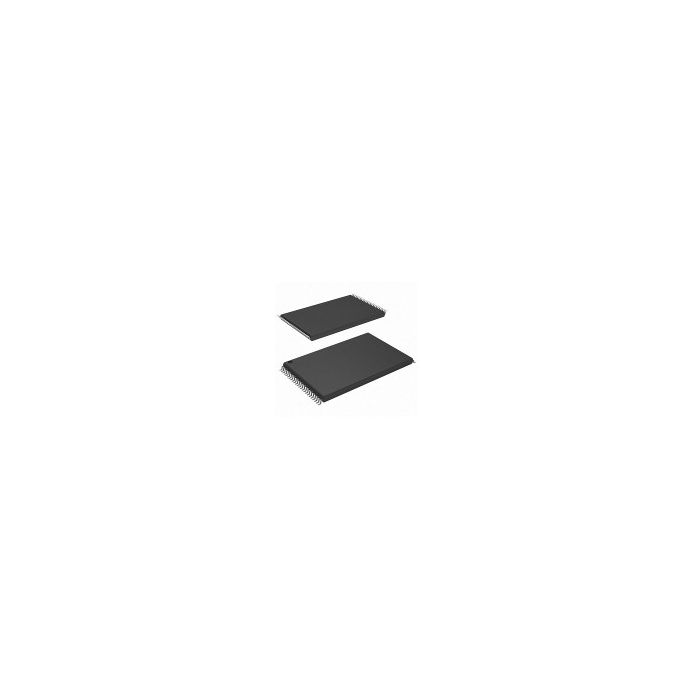

SLC NAND Flash Parallel 3V/3.3V 4G-bit 512M x 8 48-Pin TSOP-I T/R

Informacje podstawowe

  • ProducentCypress Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 180
  • Inventory 2*
  • PCNs 28
  • MaskPart S34ML04G200TFI00%
  • IntroductionDate Aug 03, 2012
  • SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=S34ML04G200TFI003

Parametry

  • Address Bus Width (bit) 31
  • Architecture Sectored
  • Bank Size N/R
  • Block Organization Symmetrical
  • Boot Block No
  • Cell Type SLC NAND
  • Command Compatible No
  • Density (bit) 4G
  • Density in Bits (bit) 4294967296
  • ECC Support Yes
  • Erase Suspend/Resume Modes Support No
  • Interface Type Parallel
  • Location of Boot Block N/R
  • MMC Version N/A
  • Maximum Access Time (ns) N/A
  • Maximum Erase Time (s) 0.01/Block
  • Maximum Operating Current (mA) 30
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Page Access Time (ns) 25(Min)
  • Maximum Programming Time (ms) 0.7
  • Maximum Storage Temperature (°C) 150
  • Minimum Endurance (Cycles) 100000(Typ)
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Banks N/A
  • Number of Bits per Word (bit) 8
  • Number of Words 512M
  • OE Access Time (ns) N/A
  • Page Read Current (mA) N/A
  • Page Size 2Kbyte
  • Program Current (mA) 30
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Sector Size 128Kbyte x 4096
  • Simultaneous Read/Write Support No
  • Supplier Temperature Grade Industrial
  • Support of Common Flash Interface No
  • Support of Page Mode Yes
  • Timing Type Asynchronous
  • Tradename N/A
  • Typical Operating Supply Voltage (V) 3|3.3

Więcej informacji

Do pobrania Download
Main description SLC NAND Flash Parallel 3V/3.3V 4G-bit 512M x 8 48-Pin TSOP-I T/R
