S34ML01G100BHI000
| Do pobrania | Download |
|---|---|

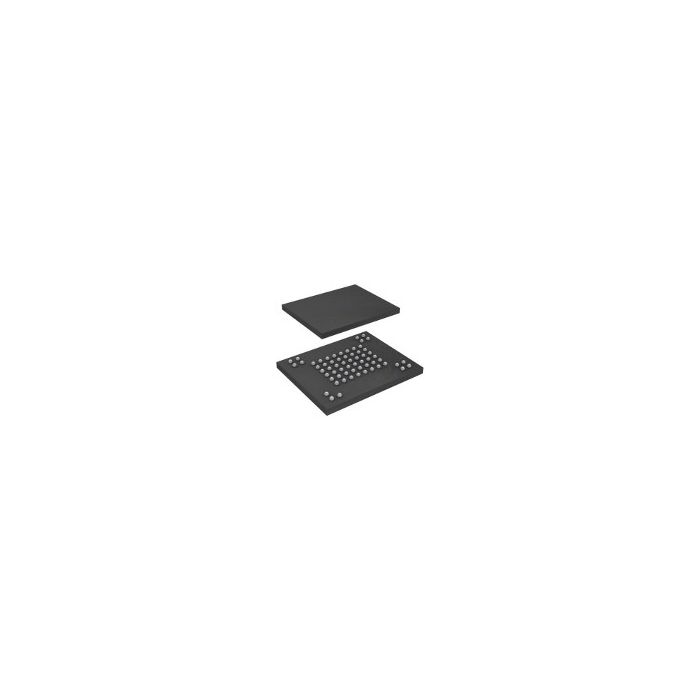

| Main description | SLC NAND Flash Parallel 3V/3.3V 1G-bit 128M x 8 20ns 63-Pin BGA Tray |
SLC NAND Flash Parallel 3V/3.3V 1G-bit 128M x 8 20ns 63-Pin BGA Tray
Informacje podstawowe
- ProducentCypress Semiconductor
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 341
- Inventory 4
- PCNs 26
- MaskPart S34ML01G100BHI00%
- IntroductionDate Aug 02, 2012
- SupplierUrl http://www.cypress.com/?app=search&searchType=part&keywords=S34ML01G100BHI000
Parametry
- Address Bus Width (bit) 28
- Architecture Sectored
- Bank Size N/R
- Block Organization Symmetrical
- Boot Block No
- Cell Type SLC NAND
- Command Compatible No
- Density (bit) 1G
- Density in Bits (bit) 1073741824
- ECC Support Yes
- Erase Suspend/Resume Modes Support No
- Interface Type Parallel
- Location of Boot Block N/R
- MMC Version N/A
- Maximum Access Time (ns) 20
- Maximum Erase Time (s) 0.003/Block
- Maximum Page Access Time (ns) N/R
- Maximum Programming Time (ms) 0.7
- Maximum Storage Temperature (°C) 150
- Minimum Endurance (Cycles) 100000(Typ)
- Minimum Storage Temperature (°C) -65
- Number of Banks N/A
- Number of Bits per Word (bit) 8
- Number of Words 128M
- OE Access Time (ns) N/A
- Page Read Current (mA) N/R
- Page Size 2Kbyte
- Program Current (mA) 30
- Programmability Yes
- Programming Voltage (V) N/A
- Sector Size 128Kbyte x 1024
- Simultaneous Read/Write Support No
- Supplier Temperature Grade Industrial
- Support of Common Flash Interface No
- Support of Page Mode No
- Timing Type Asynchronous
